| Part Number | 8226 |
|---|
| Manufacturer | Keystone Electronics |
|---|

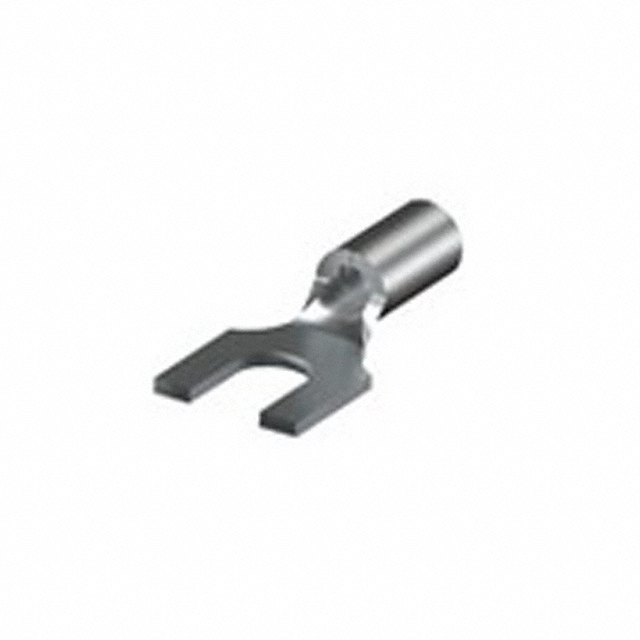

| Description | TERM BLOCK SPADE #10 STUD UNINS |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | - |
|---|
| Family | Terminals - Spade Connectors |
|---|
| Standard Package | 100 |
|---|
| Packaging | Bulk |
|---|
| Terminal Type | Standard |
|---|
| Stud/Tab Size | 10 Stud |
|---|
| Width - Outer Edges | 0.320" (8.13mm) |
|---|
| Length - Overall | 0.730" (18.54mm) |
|---|
| Mounting Type | Free Hanging (In-Line) |
|---|
| Termination | Crimp |
|---|
| Wire Gauge | 10-12 AWG |
|---|
| Insulation | Non-Insulated |
|---|
| Features | - |
|---|
| Color | - |
|---|
| Contact Finish | Tin |
|---|
| Contact Material | Copper, ETP |
|---|
| Insulation Diameter | - |
|---|
| Material - Insulation | - |
|---|
| Length - Ring Center to Termination | 0.290" (7.37mm) |
|---|
| Length - Termination | 0.250" (6.35mm) |
|---|
| Tongue Inside Opening | - |
|---|
| Tooling | 36-1345-ND - TOOL |
|---|
| Other Names | 36-82268226K8226K-ND |
|---|
