| Part Number | 52936 |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|

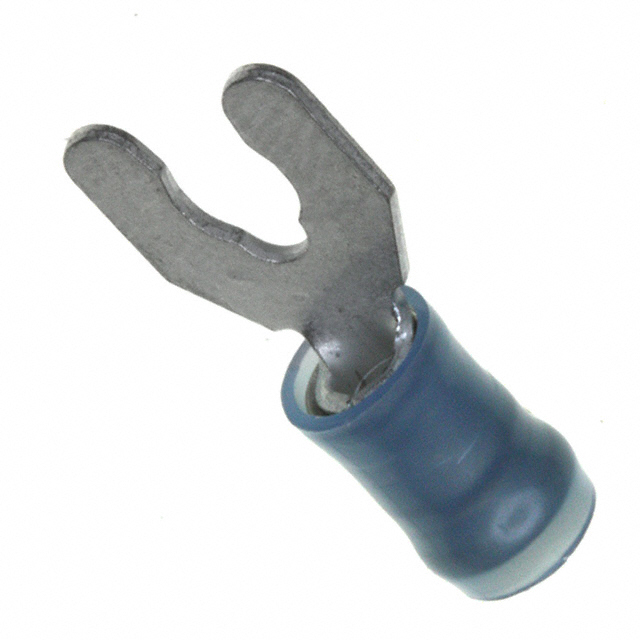

| Description | CONN SPD SPR 14-16 AWG #8 .170 |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | PIDG |
|---|
| Family | Terminals - Spade Connectors |
|---|
| Featured Product |
SOLISTRAND, Budget, and DIAMOND GRIP Terminals and Splices
|
|---|
| 3D Model |
52936.pdf
|
|---|
| Standard Package | 10,000 |
|---|
| Packaging | Bulk |
|---|
| Terminal Type | Spring, Snap |
|---|
| Stud/Tab Size | 8 Stud |
|---|
| Width - Outer Edges | 0.375" (9.53mm) |
|---|
| Length - Overall | 0.860" (21.84mm) |
|---|
| Mounting Type | Free Hanging (In-Line) |
|---|
| Termination | Crimp |
|---|
| Wire Gauge | 14-16 AWG |
|---|
| Insulation | Insulated |
|---|
| Features | Serrated Termination |
|---|
| Color | Blue |
|---|
| Contact Finish | Tin |
|---|
| Contact Material | Phosphor Bronze |
|---|
| Insulation Diameter | 0.115" ~ 0.170" (2.92mm ~ 4.32mm) |
|---|
| Material - Insulation | Polyamide (PA), Nylon |
|---|
| Length - Ring Center to Termination | 0.281" (7.14mm) |
|---|
| Length - Termination | 0.404" (10.26mm) |
|---|
| Tongue Inside Opening | 0.164" (4.17mm) |
|---|
| Tooling | A9811-ND - TOOL CRIMP INSUL TERM W/DIE SETA9991-ND - DIESET SPLICE TERMINALSA120068-ND - DIE SET FOR CRIMP CERTI-LOKA27982-ND - TOOL HAND CRIMP PIDG 14-16 AWGA120078-ND - TOOL HAND CRIMP PIDG 14-16AWG1-47387-0-ND - TOOL HEAD CRIMP 16-14AWG PIDG |
|---|
| Other Names | A1093 |
|---|
