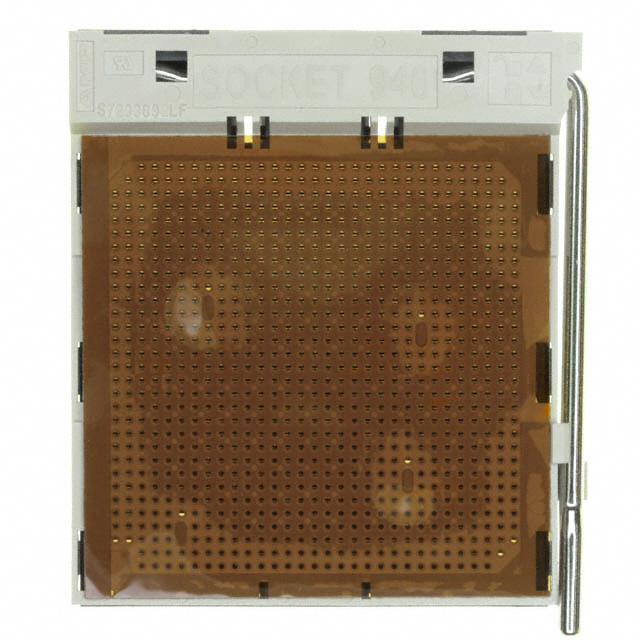

| Part Number | 1761503-1 |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|
| Description | CONN SOCKET PGA 940POS GOLD |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | - |
|---|
| Family | Sockets for ICs, Transistors |
|---|
| Standard Package | 2,600 |
|---|
| Packaging | - |
|---|
| Type | PGA |
|---|
| Number of Positions or Pins (Grid) | 940 (30 x 30) |
|---|
| Pitch - Mating | 0.050" (1.27mm) |
|---|
| Contact Finish - Mating | Gold |
|---|
| Contact Finish Thickness - Mating | 30μin (0.76μm) |
|---|
| Contact Material - Mating | - |
|---|
| Mounting Type | Surface Mount |
|---|
| Features | Closed Frame |
|---|
| Termination | - |
|---|
| Pitch - Post | - |
|---|
| Contact Finish - Post | - |
|---|
| Contact Finish Thickness - Post | - |
|---|
| Contact Material - Post | - |
|---|
| Housing Material | - |
|---|
| Operating Temperature | - |
|---|
| Termination Post Length | - |
|---|
| Material Flammability Rating | - |
|---|
| Current Rating | - |
|---|
| Contact Resistance | - |
|---|
| Other Names | A97509 |
|---|
