| Part Number | 39522-1012 |
|---|
| Manufacturer | Molex Connector Corporation |
|---|

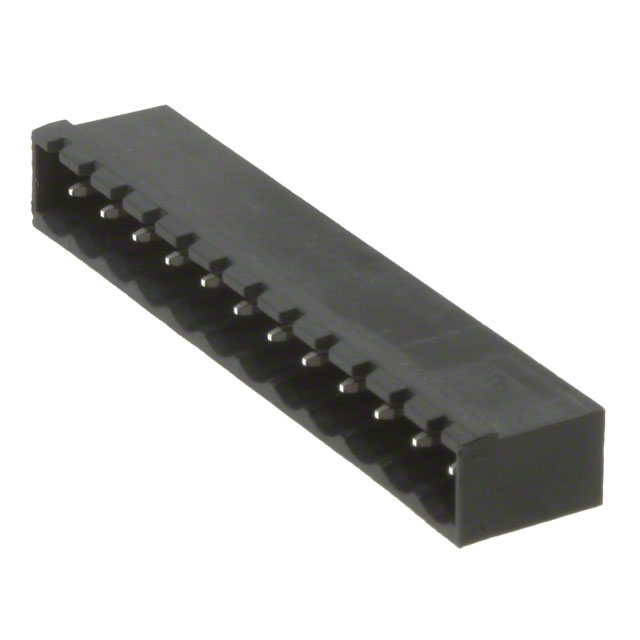

| Description | TERM BLOCK HDR 12POS R/A 5MM |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | Eurostyle? ESE 39522 |
|---|
| Family | Terminal Blocks - Headers, Plugs and Sockets |
|---|
| 3D Model |
39522-1012.stp
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Bulk |
|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
|---|
| Number of Positions | 12 |
|---|
| Positions Per Level | 12 |
|---|
| Number of Levels | 1 |
|---|
| Pitch | 0.197" (5.00mm) |
|---|
| Header Orientation | 90°, Right Angle |
|---|
| Plug Wire Entry | - |
|---|
| Termination Style | Solder |
|---|
| Mounting Type | Through Hole |
|---|
| Current - IEC | - |
|---|
| Voltage - IEC | - |
|---|
| Current - UL | 15A |
|---|
| Voltage - UL | 300V |
|---|
| Wire Gauge or Range - AWG | - |
|---|
| Wire Gauge or Range - mm2 | - |
|---|
| Color | Black |
|---|
| Operating Temperature | -40°C ~ 105°C |
|---|
| Contact Mating Finish | Tin |
|---|
| Features | - |
|---|
| Online Catalog | Eurostyle? ESE Series |
|---|
| Mating Products | WM7798-ND - TERM BLOCK PLUG 12POS STR 5MM0395205012-ND - TERM BLOCK PLUG 12POS STR 5MM0395232012-ND - TERM BLOCK PLUG 12POS 270DEG 5MM0395233012-ND - TERM BLOCK PLUG 12POS 90DEG 5MM0395200112-ND - TERM BLOCK PLUG 12POS STR 5MM0395200212-ND - TERM BLOCK PLUG 12POS STR 5MM0395205112-ND - TERM BLOCK PLUG 12POS STR 5MM0395205212-ND - TERM BLOCK PLUG 12POS STR 5MM0395237012-ND - TERM BLOCK PLUG 12POS 270DEG 5MM0395238012-ND - TERM BLOCK PLUG 12POS 90DEG 5MM0395232312-ND - TERM BLOCK PLUG 12POS 270DEG 5MM0395232412-ND - TERM BLOCK PLUG 12POS 270DEG 5MM0395233312-ND - TERM BLOCK PLUG 12POS 90DEG 5MM0395233412-ND - TERM BLOCK PLUG 12POS 90DEG 5MM0395237312-ND - TERM BLOCK PLUG 12POS 270DEG 5MM0395237412-ND - TERM BLOCK PLUG 12POS 270DEG 5MM0395238312-ND - TERM BLOCK PLUG 12POS 90DEG 5MM0395238412-ND - TERM BLOCK PLUG 12POS 90DEG 5MM0395200512-ND - TERM BLOCK PLUG 12POS STR 5MM0395205512-ND - TERM BLOCK PLUG 12POS STR 5MM0395200612-ND - TERM BLOCK PLUG 12POS STR 5MM0395200712-ND - TERM BLOCK PLUG 12POS STR 5MM0395205612-ND - TERM BLOCK PLUG 12POS STR 5MM0395205712-ND - TERM BLOCK PLUG 12POS STR 5MM0395232512-ND - TERM BLOCK PLUG 12POS 270DEG 5MM0395233512-ND - TERM BLOCK PLUG 12POS 90DEG 5MM0395237512-ND - TERM BLOCK PLUG 12POS 270DEG 5MM0395238512-ND - TERM BLOCK PLUG 12POS 90DEG 5MM0395232812-ND - TERM BLOCK PLUG 12POS 270DEG 5MM0395232912-ND - TERM BLOCK PLUG 12POS 270DEG 5MM0395233812-ND - TERM BLOCK PLUG 12POS 90DEG 5MM0395233912-ND - TERM BLOCK PLUG 12POS 90DEG 5MM0395237812-ND - TERM BLOCK PLUG 12POS 270DEG 5MM0395237912-ND - TERM BLOCK PLUG 12POS 270DEG 5MM0395238812-ND - TERM BLOCK PLUG 12POS 90DEG 5MM0395238912-ND - TERM BLOCK PLUG 12POS 90DEG 5MM |
|---|
| Other Names | 039522-1012039522-1012-E03952210120395221012-E39522-1012-E395221012395221012-EWM7818 |
|---|
