| Part Number | 832-AG11D-ESL |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|

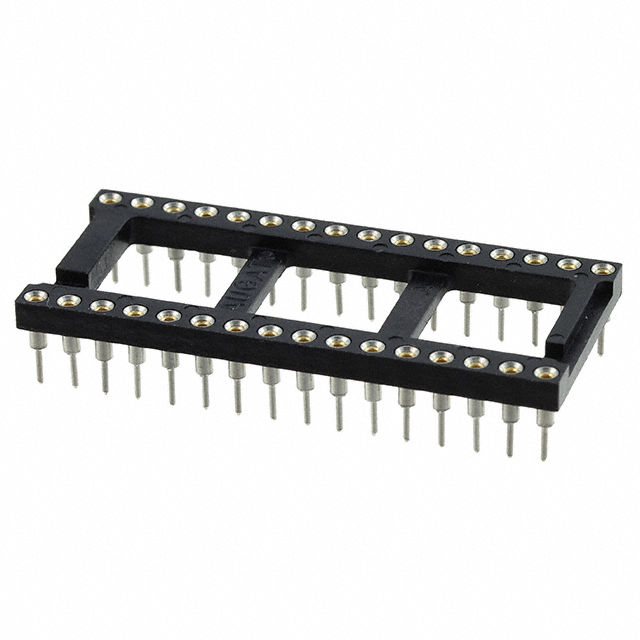

| Description | CONN IC DIP SOCKET 32POS GOLD |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | 800 |
|---|
| Family | Sockets for ICs, Transistors |
|---|
| 3D Model |
1437540-3.pdf
|
|---|
| Standard Package | 1,500 |
|---|
| Packaging | Tube |
|---|
| Type | DIP, 0.6" (15.24mm) Row Spacing |
|---|
| Number of Positions or Pins (Grid) | 32 (2 x 16) |
|---|
| Pitch - Mating | 0.100" (2.54mm) |
|---|
| Contact Finish - Mating | Gold |
|---|
| Contact Finish Thickness - Mating | 5μin (0.13μm) |
|---|
| Contact Material - Mating | Copper Alloy |
|---|
| Mounting Type | Through Hole |
|---|
| Features | Open Frame |
|---|
| Termination | Solder |
|---|
| Pitch - Post | 0.100" (2.54mm) |
|---|
| Contact Finish - Post | Tin-Lead |
|---|
| Contact Finish Thickness - Post | - |
|---|
| Contact Material - Post | Copper Alloy |
|---|
| Housing Material | Polyester |
|---|
| Operating Temperature | -55°C ~ 105°C |
|---|
| Termination Post Length | 0.125" (3.18mm) |
|---|
| Material Flammability Rating | UL94 V-0 |
|---|
| Current Rating | 3A |
|---|
| Contact Resistance | 10 mOhm |
|---|
| Other Names | 1437540-31437540-3-NDA114835 |
|---|
