| Part Number | DILB40P-223TLF |
|---|
| Manufacturer | FCI |
|---|

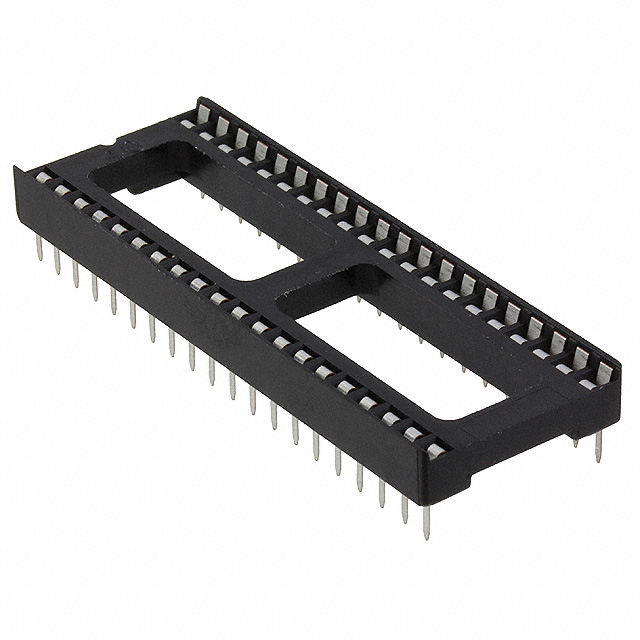

| Description | CONN IC DIP SOCKET 40POS TIN |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | - |
|---|
| Family | Sockets for ICs, Transistors |
|---|
| Standard Package | 12 |
|---|
| Packaging | Tube |
|---|
| Type | DIP, 0.6" (15.24mm) Row Spacing |
|---|
| Number of Positions or Pins (Grid) | 40 (2 x 20) |
|---|
| Pitch - Mating | 0.100" (2.54mm) |
|---|
| Contact Finish - Mating | Tin |
|---|
| Contact Finish Thickness - Mating | 100μin (2.54μm) |
|---|
| Contact Material - Mating | Copper Alloy |
|---|
| Mounting Type | Through Hole |
|---|
| Features | Open Frame |
|---|
| Termination | Solder |
|---|
| Pitch - Post | 0.100" (2.54mm) |
|---|
| Contact Finish - Post | Tin |
|---|
| Contact Finish Thickness - Post | 100μin (2.54μm) |
|---|
| Contact Material - Post | Copper Alloy |
|---|
| Housing Material | Polyamide (PA), Nylon |
|---|
| Operating Temperature | -55°C ~ 105°C |
|---|
| Termination Post Length | 0.124" (3.15mm) |
|---|
| Material Flammability Rating | UL94 V-0 |
|---|
| Current Rating | 1A |
|---|
| Contact Resistance | 30 mOhm |
|---|
| Online Catalog | Sockets for ICs, Transistors |
|---|
| Other Names | 609-4716 |
|---|
