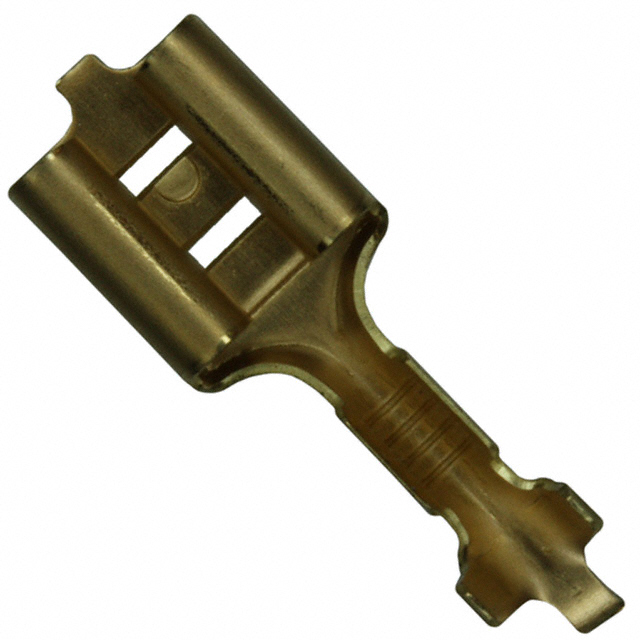

| Part Number | 41771 |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|
| Description | CONN QC RCPT 18-22AWG 0.250 |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | Faston |
|---|
| Family | Terminals - Quick Connects, Quick Disconnect Connectors |
|---|
| 3D Model |
41771.pdf
|
|---|
| Standard Package | 12,500 |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| Terminal Type | Standard |
|---|
| Gender | Female |
|---|
| Tab Width | 0.250" (6.35mm) |
|---|
| Tab Thickness | 0.032" (0.81mm) |
|---|
| Tab Length | 0.310" (7.87mm) |
|---|
| Length - Overall | 0.750" (19.05mm) |
|---|
| Termination | Crimp |
|---|
| Wire Gauge | 18-22 AWG |
|---|
| Insulation | Non-Insulated |
|---|
| Mounting Type | Free Hanging (In-Line) |
|---|
| Features | - |
|---|
| Color | - |
|---|
| Contact Material | Brass |
|---|
| Contact Finish | - |
|---|
| Insulation Diameter | 0.090" ~ 0.130" (2.29mm ~ 3.30mm) |
|---|
| Online Catalog | Faston Series |
|---|
| Other Names | 41771-NDA27584A27584-NDA27584TR |
|---|
