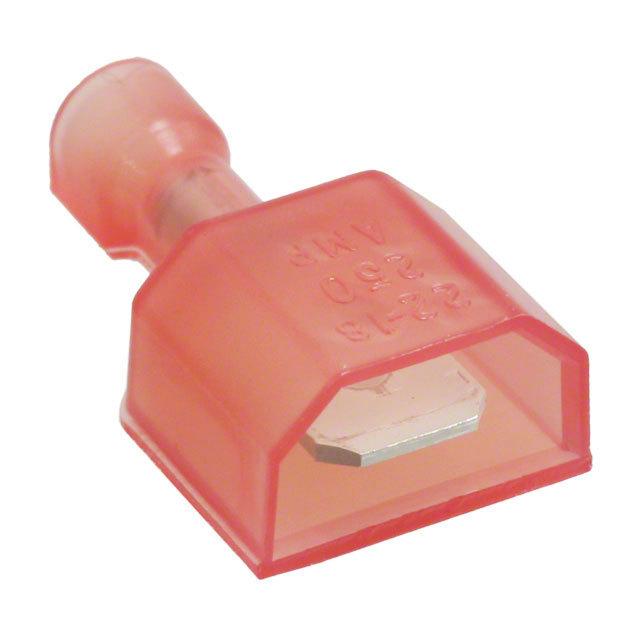

| Part Number | 2-520102-2 |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|
| Description | CONN QC TAB 18-22AWG 0.250 CRIMP |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | Ultra-Fast |
|---|
| Family | Terminals - Quick Connects, Quick Disconnect Connectors |
|---|
| 3D Model |
2-520102-2.pdf
|
|---|
| Standard Package | 1,400 |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| Terminal Type | Standard |
|---|
| Gender | Male |
|---|
| Tab Width | 0.250" (6.35mm) |
|---|
| Tab Thickness | 0.032" (0.81mm) |
|---|
| Tab Length | - |
|---|
| Length - Overall | 0.855" (21.72mm) |
|---|
| Termination | Crimp |
|---|
| Wire Gauge | 18-22 AWG |
|---|
| Insulation | Fully Insulated |
|---|
| Mounting Type | Free Hanging (In-Line) |
|---|
| Features | - |
|---|
| Color | Red |
|---|
| Contact Material | Brass |
|---|
| Contact Finish | Tin |
|---|
| Insulation Diameter | 0.135" (3.43mm) |
|---|
| Online Catalog | Ultra-Fast Series |
|---|
| Tooling | 58269-2-ND - DIE ASSY ULTRA FAST 22-18AWG |
|---|
| Other Names | 2-520102-2-ND25201022A27906TR |
|---|
