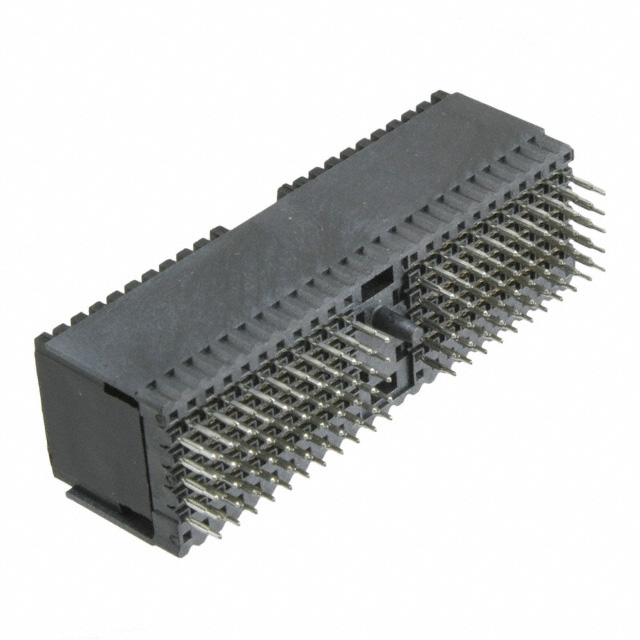

| Part Number | HSHM-H110A4-5CP1-TG30 |
|---|
| Manufacturer | 3M |
|---|
| Description | CONN HEADER HSHM 110POS 5ROW STR |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | MetPak? HSHM |
|---|
| Family | Backplane Connectors - Hard Metric, Standard |
|---|
| PCN Design/Specification |
HSHM, UHM Voltage 15/Oct/2014
|
|---|
| Standard Package | 240 |
|---|
| Packaging | Bulk |
|---|
| Connector Type | Header, Male Pins |
|---|
| Connector Style | A 22 |
|---|
| Number of Positions | 110 |
|---|
| Number of Positions Loaded | All |
|---|
| Pitch | 0.079" (2.00mm) |
|---|
| Number of Rows | 5 |
|---|
| Mounting Type | Through Hole |
|---|
| Termination | Press-Fit |
|---|
| Connector Usage | Backplane |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | 30μin (0.76μm) |
|---|
| Current Rating | 1A |
|---|
| Voltage Rating | - |
|---|
| Operating Temperature | -55°C ~ 125°C |
|---|
| Features | Board Guide, Shielded |
|---|
| Other Names | 51111622975111162297180400025195HSHMH110A45CP1TG30 |
|---|
