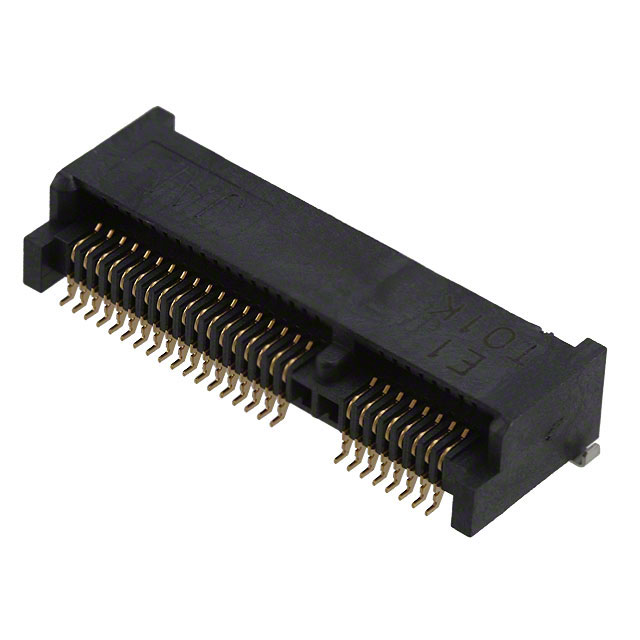

| Part Number | MM60-52B1-B1-R850 |
|---|
| Manufacturer | JAE Electronics |
|---|
| Description | CONN MINI EXPRESS CARD 52POS SMD |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | MM60 |
|---|
| Family | Card Edge Connectors - Edgeboard Connectors |
|---|
| Other Related Documents |
Card Selection Guide
|
|---|
| Product Training Modules |
MM60 PCIe Mini Card Connector
|
|---|
| Featured Product |
MM60 Series Mini Card Connectors
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Cut Tape (CT) |
|---|
| Card Type | PCI Express Mini Card |
|---|
| Gender | Female |
|---|
| Number of Positions/Bay/Row | - |
|---|
| Number of Positions | 52 |
|---|
| Card Thickness | 0.039" (1.00mm) |
|---|
| Number of Rows | 2 |
|---|
| Pitch | 0.031" (0.80mm) |
|---|
| Features | Board Guide |
|---|
| Mounting Type | Surface Mount, Right Angle |
|---|
| Termination | Solder |
|---|
| Contact Material | Copper Alloy |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | 3.9μin (0.10μm) |
|---|
| Contact Type | - |
|---|
| Color | - |
|---|
| Flange Feature | - |
|---|
| Operating Temperature | -40°C ~ 85°C |
|---|
| Material - Insulation | Thermoplastic |
|---|
| Read Out | Dual |
|---|
| Online Catalog | MM60 Series |
|---|
| Associated Product | 670-2481-2-ND - STANDOFF FOR MM60-52B1-B1 3.9MM670-2481-1-ND - STANDOFF FOR MM60-52B1-B1 3.9MM670-2481-6-ND - STANDOFF FOR MM60-52B1-B1 3.9MM670-2276-2-ND - CONN MINI EXPRESS CARD LATCH SMD670-2276-1-ND - CONN MINI EXPRESS CARD LATCH SMD670-2276-6-ND - CONN MINI EXPRESS CARD LATCH SMD |
|---|
| Other Names | 670-2274670-2274-1670-2274-NDMM60-52B1-B1 |
|---|
