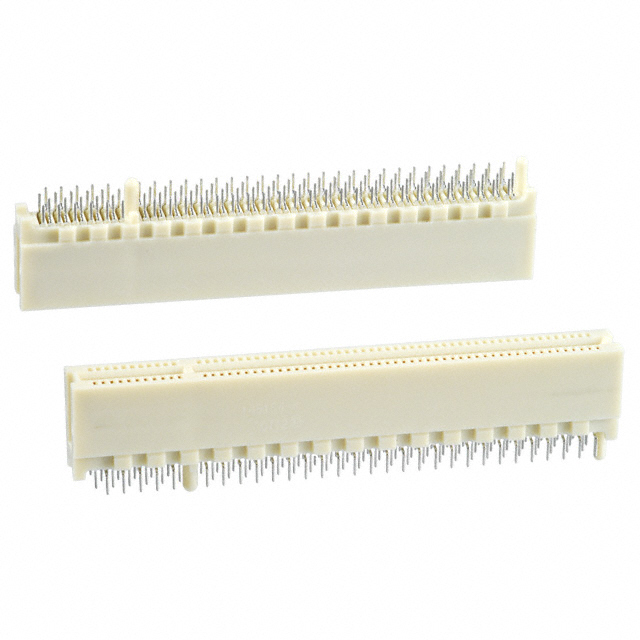

| Part Number | 5145154-4 |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|
| Description | CONN CARDEDGE 60 DL POS .050 PCI |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | Standard Edge .050 |
|---|
| Family | Card Edge Connectors - Edgeboard Connectors |
|---|
| 3D Model |
5145154-4.pdf
|
|---|
| Standard Package | 35 |
|---|
| Packaging | Bulk |
|---|
| Card Type | PCI? |
|---|
| Gender | Female |
|---|
| Number of Positions/Bay/Row | 11; 49 |
|---|
| Number of Positions | 120 |
|---|
| Card Thickness | 0.062" (1.57mm) |
|---|
| Number of Rows | 2 |
|---|
| Pitch | 0.050" (1.27mm) |
|---|
| Features | Board Guide |
|---|
| Mounting Type | Through Hole |
|---|
| Termination | Solder, Staggered |
|---|
| Contact Material | Phosphor Bronze |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | 30μin (0.76μm) |
|---|
| Contact Type | - |
|---|
| Color | Natural |
|---|
| Flange Feature | - |
|---|
| Operating Temperature | - |
|---|
| Material - Insulation | Thermoplastic |
|---|
| Read Out | Dual |
|---|
| Online Catalog | Standard Edge .050 Series |
|---|
| Other Names | 5145154-4-ND51451544A97905 |
|---|
