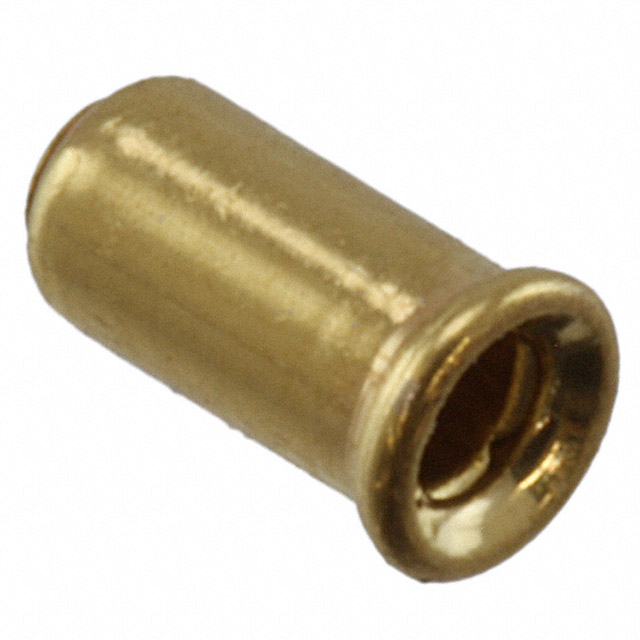

| Part Number | 1-332070-3 |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|
| Description | CONN SOCKET RCPT .034-.037 30AU |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | 4 |
|---|
| Family | Terminals - PC Pin Receptacles, Socket Connectors |
|---|
| 3D Model |
1-332070-3.pdf
|
|---|
| Standard Package | 10,000 |
|---|
| Packaging | Bulk |
|---|
| Tail Type | No Tail |
|---|
| Termination | Solder |
|---|
| Length - Overall | 0.143" (3.63mm) |
|---|
| Accepts Pin Diameter | 0.034" ~ 0.037" (0.86mm ~ 0.94mm) |
|---|
| Mounting Hole Diameter | 0.072" (1.83mm) |
|---|
| Pin Hole Diameter | - |
|---|
| Flange Diameter | 0.089" (2.26mm) |
|---|
| Tail Diameter | - |
|---|
| Socket Depth | 0.130" (3.30mm) |
|---|
| Contact Material | Beryllium Copper |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | 30μin (0.76μm) |
|---|
| Features | Open Bottom |
|---|
| Operating Temperature | -65°C ~ 125°C |
|---|
| Board Thickness | - |
|---|
| Insertion Force | - |
|---|
| Other Names | 1-332070-3-NDA112042 |
|---|
