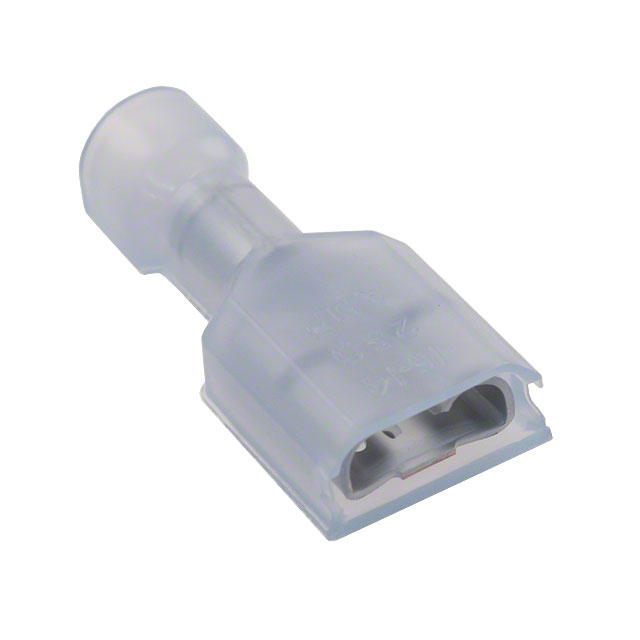

| Part Number | 3-520117-2 |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|
| Description | CONN QC RCPT 14-16AWG 0.250 |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | Ultra-Fast |
|---|
| Family | Terminals - Quick Connects, Quick Disconnect Connectors |
|---|
| 3D Model |
3-520117-2.pdf
|
|---|
| Standard Package | 1,000 |
|---|
| Packaging | Bulk |
|---|
| Terminal Type | Standard |
|---|
| Gender | Female |
|---|
| Tab Width | 0.250" (6.35mm) |
|---|
| Tab Thickness | 0.032" (0.81mm) |
|---|
| Tab Length | - |
|---|
| Length - Overall | 0.855" (21.72mm) |
|---|
| Termination | Crimp |
|---|
| Wire Gauge | 14-16 AWG |
|---|
| Insulation | Fully Insulated |
|---|
| Mounting Type | Free Hanging (In-Line) |
|---|
| Features | - |
|---|
| Color | Blue |
|---|
| Contact Material | Phosphor Bronze |
|---|
| Contact Finish | Tin |
|---|
| Insulation Diameter | 0.160" (4.06mm) |
|---|
| Online Catalog | Ultra-Fast Series |
|---|
| Tooling | A9796-ND - TOOL DIESET 14-26AWG ULTRAFAST58628-1-ND - TOOL PROCRIMP 14-26AWG ULTRAFASTA28008-ND - DIE SET ULTRA-FASTONS 16-14 AWG |
|---|
| Other Names | 3-520117-2-ND35201172A27826 |
|---|
