| Part Number | 3-822516-7 |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|

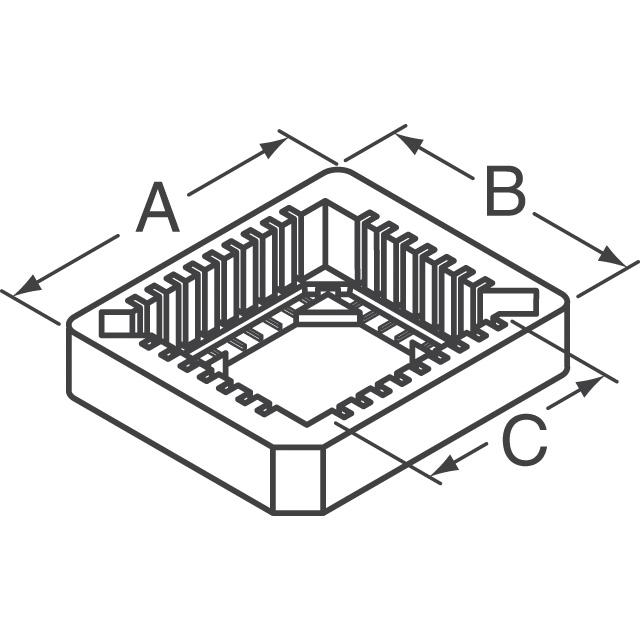

| Description | CONN SOCKET PLCC 32POS TIN |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | - |
|---|
| Family | Sockets for ICs, Transistors |
|---|
| 3D Model |
3-822516-7.pdf
|
|---|
| EDA / CAD Models |
Download from Accelerated Designs |
|---|
| Standard Package | 1 |
|---|
| Packaging | Digi-Reel? |
|---|
| Type | PLCC |
|---|
| Number of Positions or Pins (Grid) | 32 (2 x 7, 2 x 9) |
|---|
| Pitch - Mating | 0.050" (1.27mm) |
|---|
| Contact Finish - Mating | Tin |
|---|
| Contact Finish Thickness - Mating | 100μin (2.54μm) |
|---|
| Contact Material - Mating | Phosphor Bronze |
|---|
| Mounting Type | Surface Mount |
|---|
| Features | Closed Frame |
|---|
| Termination | Solder |
|---|
| Pitch - Post | 0.050" (1.27mm) |
|---|
| Contact Finish - Post | Tin |
|---|
| Contact Finish Thickness - Post | 100μin (2.54μm) |
|---|
| Contact Material - Post | Phosphor Bronze |
|---|
| Housing Material | Thermoplastic |
|---|
| Operating Temperature | - |
|---|
| Termination Post Length | - |
|---|
| Material Flammability Rating | UL94 V-0 |
|---|
| Current Rating | - |
|---|
| Contact Resistance | - |
|---|
| Other Names | A97623DKR |
|---|
