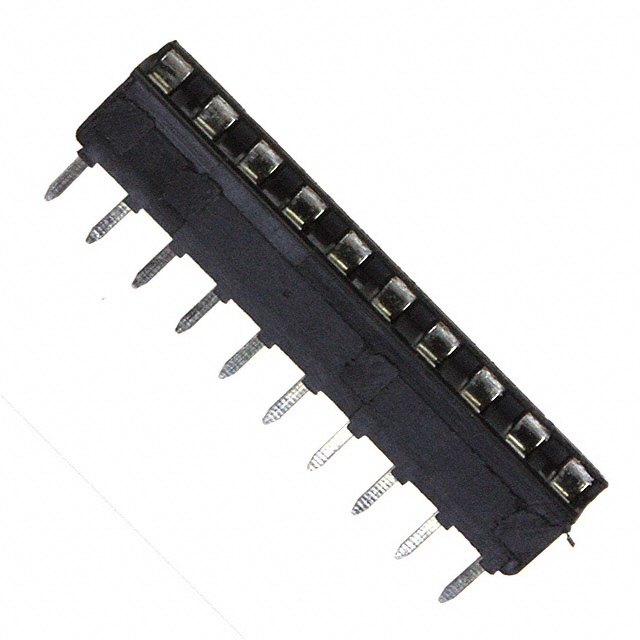

| Part Number | 643642-1 |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|
| Description | CONN SOCKET SIP 10POS TIN |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | Diplomate DL |
|---|
| Family | Sockets for ICs, Transistors |
|---|
| 3D Model |
643642-1.pdf
|
|---|
| PCN Obsolescence/ EOL |
Socket product 01/Jul/2014
|
|---|
| Standard Package | 880 |
|---|
| Packaging | Tube |
|---|
| Type | SIP |
|---|
| Number of Positions or Pins (Grid) | 10 (1 x 10) |
|---|
| Pitch - Mating | 0.100" (2.54mm) |
|---|
| Contact Finish - Mating | Tin |
|---|
| Contact Finish Thickness - Mating | - |
|---|
| Contact Material - Mating | Beryllium Copper |
|---|
| Mounting Type | Through Hole |
|---|
| Features | Closed Frame |
|---|
| Termination | Solder |
|---|
| Pitch - Post | 0.100" (2.54mm) |
|---|
| Contact Finish - Post | Tin |
|---|
| Contact Finish Thickness - Post | - |
|---|
| Contact Material - Post | Beryllium Copper |
|---|
| Housing Material | Thermoplastic, Glass Filled |
|---|
| Operating Temperature | -55°C ~ 105°C |
|---|
| Termination Post Length | 0.130" (3.30mm) |
|---|
| Material Flammability Rating | UL94 V-0 |
|---|
| Current Rating | - |
|---|
| Contact Resistance | - |
|---|
| Other Names | 643642-1-ND6436421A24816 |
|---|
