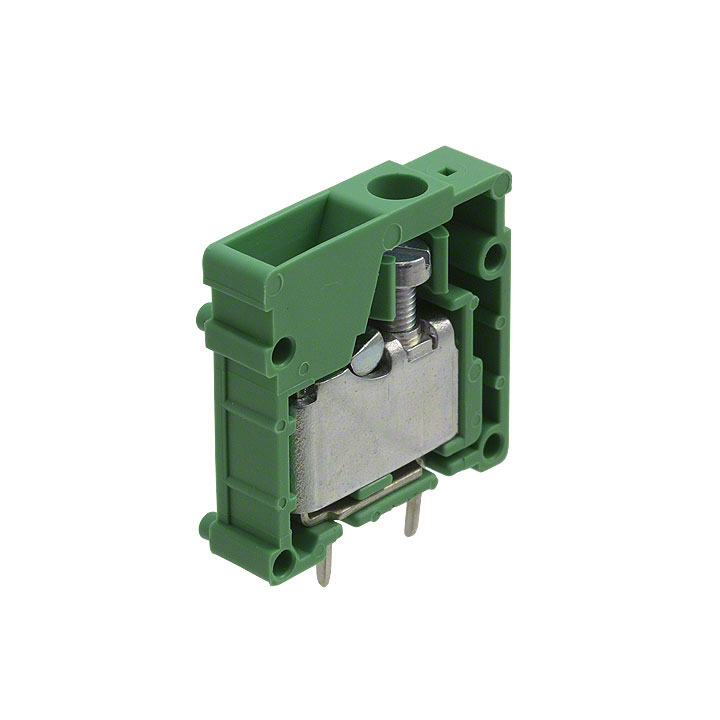

| Part Number | 1703063 |
|---|
| Manufacturer | Phoenix Contact |
|---|
| Description | TERM BLK VERT/PCB 6.35MM GREEN |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | COMBICON FRONT |
|---|
| Family | Terminal Blocks - Wire to Board |
|---|
| PCN Design/Specification |
1703050, 1703063 Plastic 19/Nov/2012
|
|---|
| Standard Package | 50 |
|---|
| Packaging | Bulk |
|---|
| Number of Levels | 1 |
|---|
| Positions Per Level | 1 |
|---|
| Pitch | - |
|---|
| Mating Orientation | Vertical with Board |
|---|
| Current | 30A |
|---|
| Voltage | 300V |
|---|
| Wire Gauge | 10-24 AWG |
|---|
| Mounting Type | Through Hole |
|---|
| Wire Termination | Screw - Pressure Clip |
|---|
| Features | Interlocking (Side) |
|---|
| Color | Green |
|---|
| Operating Temperature | - |
|---|
| Housing Material | Polyamide (PA), Nylon |
|---|
| Contact Material - Plating | - |
|---|
| Clamp Material - Plating | - |
|---|
| Screw Material - Plating | - |
|---|
| Torque - Screw | 0.5-0.6 Nm (4.4-5.3 Lb-In) |
|---|
| Screw Thread | M3 |
|---|
| Online Catalog | COMBICON FRONT Series |
|---|
| Other Names | 1703063-ND277-6535FRONT4-V-6,35 |
|---|
