| Part Number | 917-83-210-41-005101 |
|---|
| Manufacturer | Preci-Dip |
|---|

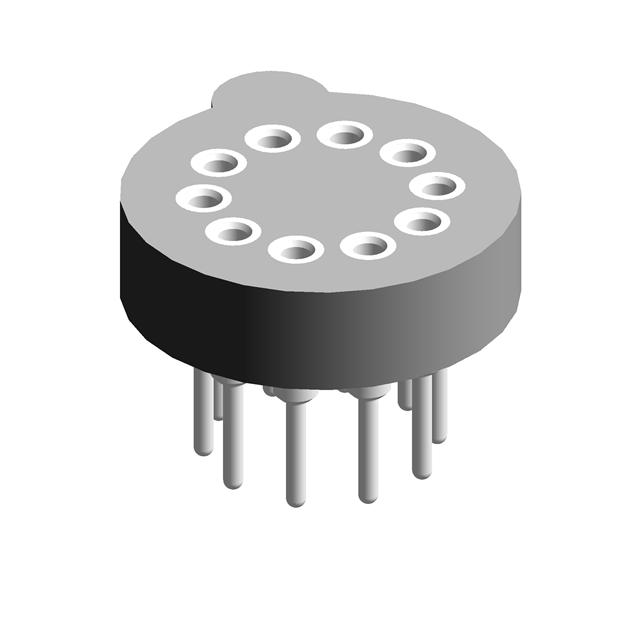

| Description | CONN TRANSIST TO-5 10POS GOLD |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | 917 |
|---|
| Family | Sockets for ICs, Transistors |
|---|
| Standard Package | 330 |
|---|
| Packaging | Bulk |
|---|
| Type | Transistor, TO-5 |
|---|
| Number of Positions or Pins (Grid) | 10 (Round) |
|---|
| Pitch - Mating | - |
|---|
| Contact Finish - Mating | Gold |
|---|
| Contact Finish Thickness - Mating | 29.5μin (0.75μm) |
|---|
| Contact Material - Mating | Beryllium Copper |
|---|
| Mounting Type | Through Hole |
|---|
| Features | - |
|---|
| Termination | Solder |
|---|
| Pitch - Post | - |
|---|
| Contact Finish - Post | Tin |
|---|
| Contact Finish Thickness - Post | - |
|---|
| Contact Material - Post | Brass |
|---|
| Housing Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled |
|---|
| Operating Temperature | -55°C ~ 125°C |
|---|
| Termination Post Length | 0.125" (3.18mm) |
|---|
| Material Flammability Rating | UL94 V-0 |
|---|
| Current Rating | 1A |
|---|
| Contact Resistance | 10 mOhm |
|---|
