| Part Number | 8080-1G1 |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|

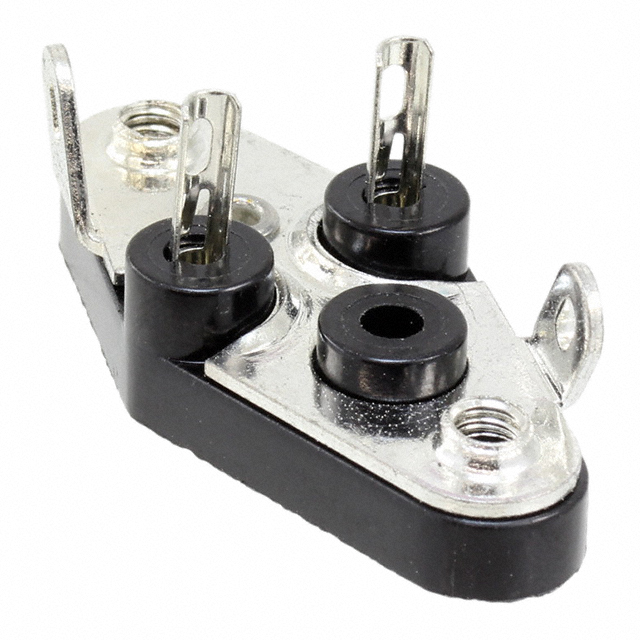

| Description | CONN TRANSIST TO-3 4POS GOLD |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | 8080 |
|---|
| Family | Sockets for ICs, Transistors |
|---|
| Standard Package | 100 |
|---|
| Packaging | Bulk |
|---|
| Type | Transistor, TO-3 |
|---|
| Number of Positions or Pins (Grid) | 4 (Round) |
|---|
| Pitch - Mating | - |
|---|
| Contact Finish - Mating | Gold |
|---|
| Contact Finish Thickness - Mating | - |
|---|
| Contact Material - Mating | Beryllium Copper |
|---|
| Mounting Type | Through Hole |
|---|
| Features | Closed Frame |
|---|
| Termination | Solder |
|---|
| Pitch - Post | - |
|---|
| Contact Finish - Post | Gold |
|---|
| Contact Finish Thickness - Post | - |
|---|
| Contact Material - Post | Beryllium Copper |
|---|
| Housing Material | Fluoropolymer (FP) |
|---|
| Operating Temperature | -55°C ~ 125°C |
|---|
| Termination Post Length | - |
|---|
| Material Flammability Rating | - |
|---|
| Current Rating | - |
|---|
| Contact Resistance | - |
|---|
| Other Names | 2-1437504-9A109130 |
|---|
