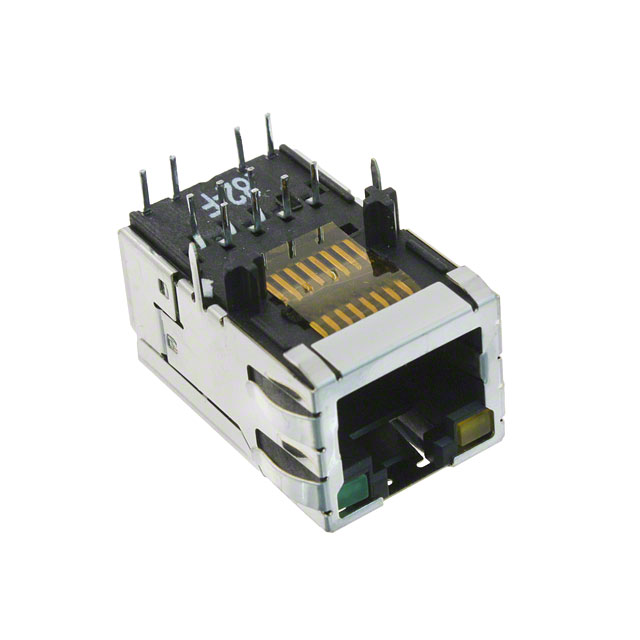

| Part Number | SI-50158-F |
|---|
| Manufacturer | Stewart Connector |
|---|
| Description | CONN MAGJACK 1PORT 100 BASE-T |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | MagJack? ST SI-50000 |
|---|
| Family | Modular Connectors - Jacks With Magnetics |
|---|
| Featured Product |
Bel - MagJack Integrated Connector Modules
Laird - BL620 Series Central-Mode BLE Module
|
|---|
| PCN Design/Specification |
Multiple Connectors Labeling/Logo 10/Dec/2014
|
|---|
| Standard Package | 50 |
|---|
| Packaging | Tray |
|---|
| Connector Type | RJ45 |
|---|
| Number of Ports | 1 |
|---|
| Number of Rows | 1 |
|---|
| Applications | 10/100 Base-T, AutoMDIX |
|---|
| Mounting Type | Through Hole |
|---|
| Orientation | 90° Angle (Right) |
|---|
| Termination | Solder |
|---|
| Height Above Board | 0.550" (13.97mm) |
|---|
| LED Color | Yellow - Green |
|---|
| Number of Cores per Jack | 4 |
|---|
| Shielding | Shielded, EMI Finger |
|---|
| Features | Board Guide |
|---|
| Tab Direction | Up |
|---|
| Contact Material | Copper Alloy |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | 50μin (1.27μm) |
|---|
| Shield Material | Copper Alloy |
|---|
| Housing Material | Thermoplastic |
|---|
| Operating Temperature | - |
|---|
| Online Catalog | MagJack? ST SI-50000 Series |
|---|
| Other Names | 380-1200SI-50158-F-NDSI50158F |
|---|
