| Part Number | 1-111196-8 |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|

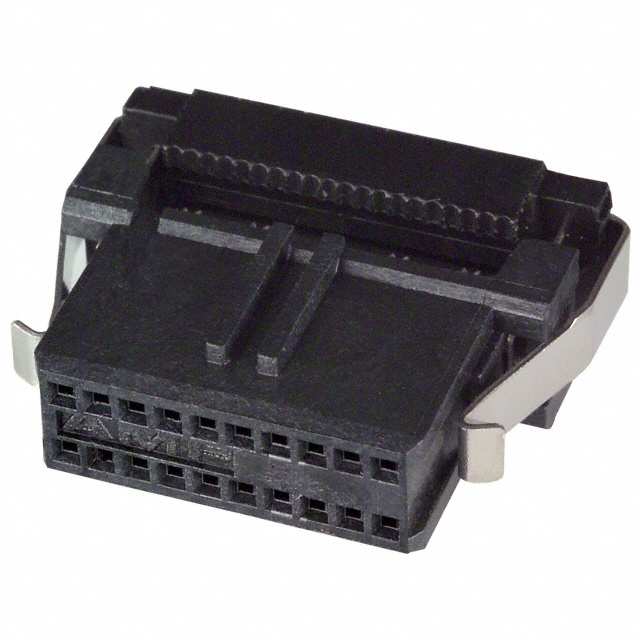

| Description | CONN RECEPT 20POS .050X.100" IDC |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | AMPMODU System 50 |
|---|
| Family | Rectangular Connectors - Free Hanging, Panel Mount |
|---|
| Product Training Modules |
AMPMODU System 50 Connectors
|
|---|
| Featured Product |
AMPMODU Connectors
|
|---|
| 3D Model |
1-111196-8.pdf
|
|---|
| Standard Package | 70 |
|---|
| Packaging | Bulk |
|---|
| Connector Type | Receptacle |
|---|
| Contact Type | Female Socket |
|---|
| Number of Positions | 20 |
|---|
| Pitch | 0.050" (1.27mm) |
|---|
| Number of Rows | 2 |
|---|
| Row Spacing | 0.100" (2.54mm) |
|---|
| Mounting Type | Free Hanging (In-Line) |
|---|
| Fastening Type | Latch Lock |
|---|
| Cable Termination | IDC |
|---|
| Wire Type | Ribbon Cable |
|---|
| Wire Gauge | 30-32 AWG |
|---|
| Features | Feed Through |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | 30μin (0.76μm) |
|---|
| Color | Black |
|---|
| Online Catalog | AMPMODU System 50 Series |
|---|
| Mating Products | A105474TR-ND - CONN HEADER 20POS DUAL SMD GOLDA105474CT-ND - CONN HEADER 20POS DUAL SMD GOLDA31875-ND - CONN HEADER 20POS .050" STR GOLDA115257-ND - CONN HEADER 20POS DUAL T/H GOLDA3250-ND - CONN HEADER VERT .050 20POS AU104666-1-ND - CONN HEADER 20POS VERT DUAL GOLD5-104477-2-ND - CONN HEADER 20POS |
|---|
| Other Names | 11111968A31857 |
|---|
