| Part Number | 1641C |
|---|
| Manufacturer | Keystone Electronics |
|---|

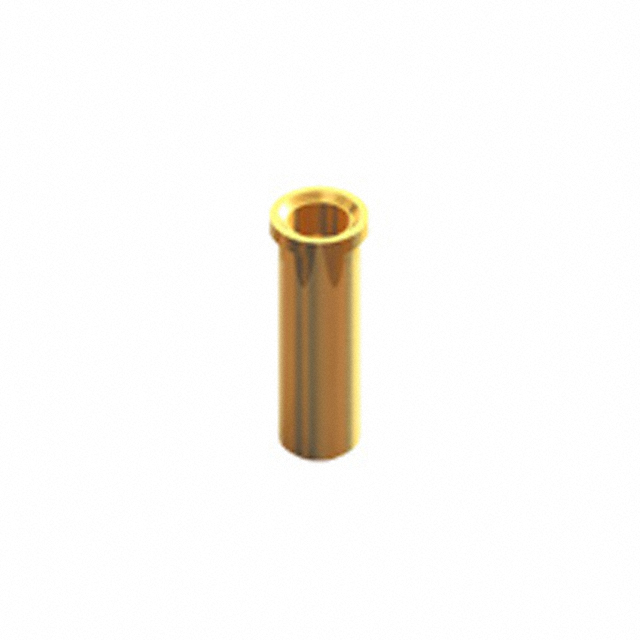

| Description | PIN MICRO .122"DIA SOLDER MNT |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | - |
|---|
| Family | Terminals - PC Pin Receptacles, Socket Connectors |
|---|
| Standard Package | 100 |
|---|
| Packaging | Bulk |
|---|
| Tail Type | No Tail |
|---|
| Termination | Solder |
|---|
| Length - Overall | 0.400" (10.16mm) |
|---|
| Accepts Pin Diameter | 0.065" ~ 0.082" (1.65mm ~ 2.08mm) |
|---|
| Mounting Hole Diameter | 0.122" (3.10mm) |
|---|
| Pin Hole Diameter | - |
|---|
| Flange Diameter | 0.143" (3.63mm) |
|---|
| Tail Diameter | - |
|---|
| Socket Depth | 0.357" (9.07mm) |
|---|
| Contact Material | Beryllium Copper |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | 10μin (0.25μm) |
|---|
| Features | - |
|---|
| Operating Temperature | - |
|---|
| Board Thickness | - |
|---|
| Insertion Force | - |
|---|
| Other Names | 1641CK1641CK-ND36-1641C |
|---|
