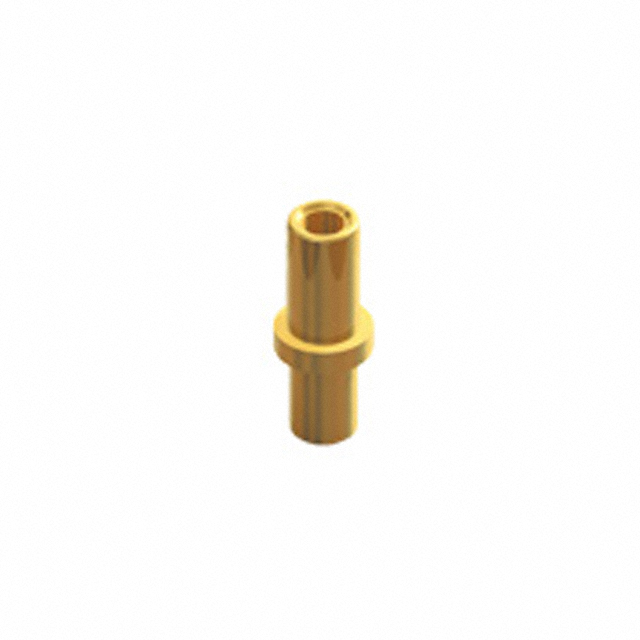

| Part Number | 1678 |
|---|
| Manufacturer | Keystone Electronics |
|---|
| Description | JACK .032"-.046" .317"L SLD MNT |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | - |
|---|
| Family | Terminals - PC Pin Receptacles, Socket Connectors |
|---|
| Standard Package | 100 |
|---|
| Packaging | Bulk |
|---|
| Tail Type | No Tail |
|---|
| Termination | Solder |
|---|
| Length - Overall | 0.317" (8.05mm) |
|---|
| Accepts Pin Diameter | 0.032" ~ 0.046" (0.81mm ~ 1.17mm) |
|---|
| Mounting Hole Diameter | 0.089" (2.26mm) |
|---|
| Pin Hole Diameter | - |
|---|
| Flange Diameter | - |
|---|
| Tail Diameter | - |
|---|
| Socket Depth | 0.220" (5.59mm) |
|---|
| Contact Material | Beryllium Copper |
|---|
| Contact Finish | Tin |
|---|
| Contact Finish Thickness | 200μin (5.08μm) |
|---|
| Features | - |
|---|
| Operating Temperature | - |
|---|
| Board Thickness | - |
|---|
| Insertion Force | - |
|---|
| Other Names | 1678K1678K-ND36-1678 |
|---|
