| Part Number | 3548-1002 |
|---|
| Manufacturer | 3M |
|---|

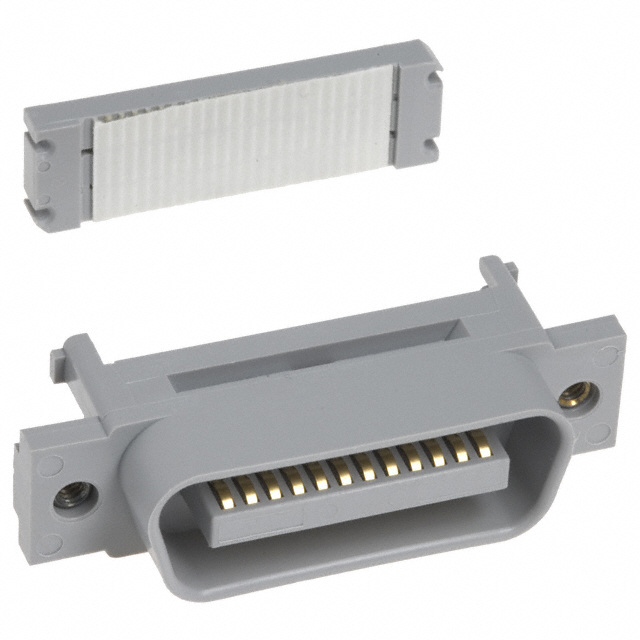

| Description | DELTA CONN 24 POS PLUG W/INSERT |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | 3548 |
|---|
| Family | D-Shaped Connectors - Centronics |
|---|
| Product Training Modules |
Input/Output Connector Systems Primer
IDC Wiremount Connectors Primer
|
|---|
| Standard Package | 100 |
|---|
| Connector Style | Center Strip Contacts |
|---|
| Connector Type | Plug |
|---|
| Number of Positions | 24 |
|---|
| Number of Rows | 2 |
|---|
| Mounting Type | Free Hanging (In-Line) |
|---|
| Termination | IDC |
|---|
| Flange Feature | Insert, Threaded (4-40) |
|---|
| Type | - |
|---|
| Features | - |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | 30μin (0.76μm) |
|---|
| Online Catalog | 3000 Series Plugs |
|---|
| Mating Products | MDE24K-ND - DELTA CONN 24POS SOCKET W/INSERTMDD24K-ND - DELTA CONN 24POS SOCK W/O INSERT3549-2002-ND - CONN SCKT 24POS DELTA W/INSER3549-2000-ND - CONN SCKT 24POS DELTA W/O INS |
|---|
| Associated Product | 3M9439-ND - PULL TAB 20,24,25,26,14POS WHITEMDSF24-ND - METAL STRAIN RELIEF 24 POS3485-1700F-ND - BACKSHELL 24 PIN PLASTIC CABLE3485-1700R-ND - CONN 24POS D RIBBON CABLE |
|---|
| Assembly | M7LXK-2406J-ND - IDC CABLE - MDH24K/MC24G/XM7LXK-2410J-ND - IDC CABLE - MDH24K/MC24G/XM7LXK-2406R-ND - IDC CABLE - MDH24K/MC24M/XM7LXK-2405K-ND - IDC CABLE - MDH24K/MC26F/XM7LXK-2410R-ND - IDC CABLE - MDH24K/MC24M/XM7LXK-2410K-ND - IDC CABLE - MDH24K/MC26F/XM7LTK-2406J-ND - IDC CABLE - MDH24K/MC24G/ |
|---|
| Other Names | 3548100254007318805400731880480-6100-8492-580610084925MDB24GMDB24K |
|---|
