| Part Number | 5-569532-3 |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|

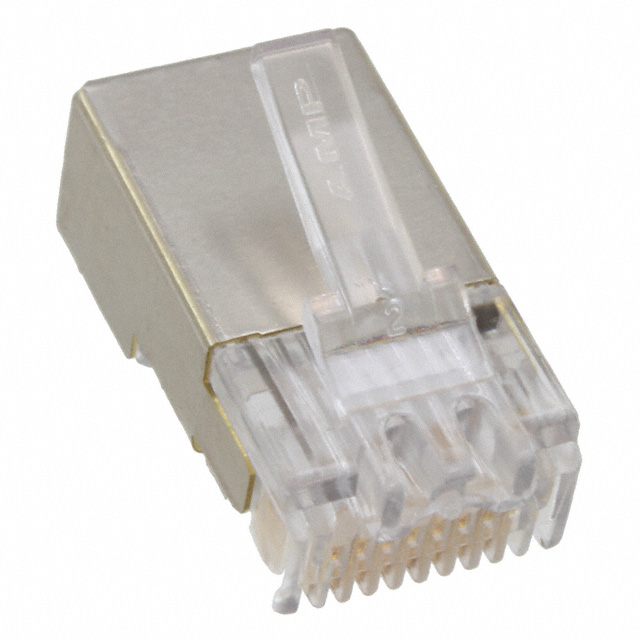

| Description | CONN MOD PLUG 8P8C SHIELDED |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | - |
|---|
| Family | Modular Connectors - Plugs |
|---|
| Featured Product |
TE Connectivity - Modular Jack
|
|---|
| 3D Model |
5-569532-3.pdf
|
|---|
| PCN Obsolescence/ EOL |
Multiple Devices 21/Apr/2015
|
|---|
| PCN Design/Specification |
Modular Plug Plating 25/Mar/2014
|
|---|
| Standard Package | 100 |
|---|
| Packaging | Bulk |
|---|
| Connector Type | Plug |
|---|
| Cable Type | Round Cable, Stranded Wires |
|---|
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
|---|
| Features | - |
|---|
| Shielding | Shielded |
|---|
| Ratings | Cat5 |
|---|
| Ingress Protection | - |
|---|
| Termination | IDC |
|---|
| Length | 0.915" (23.24mm) |
|---|
| Color | Translucent - Clear |
|---|
| Wire Gauge | 24-28 AWG |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | 50μin (1.27μm) |
|---|
| Contact Material | Phosphor Bronze |
|---|
| Current Rating | - |
|---|
| Voltage Rating | - |
|---|
| Housing Material | Polycarbonate (PC) |
|---|
| Shield Material | Copper Alloy |
|---|
| Tooling | A9900-ND - TOOL CRIMP MOD 8POS WITH DIE734218-3-ND - TOOL HAND FOR MOD PLUG354711-3-ND - TOOL CRIMPER MODULAR 8-POSITION856196-2-ND - DUAL PLUG ASSY |
|---|
| Other Names | 5-569532-3-ND55695323A105066 |
|---|
