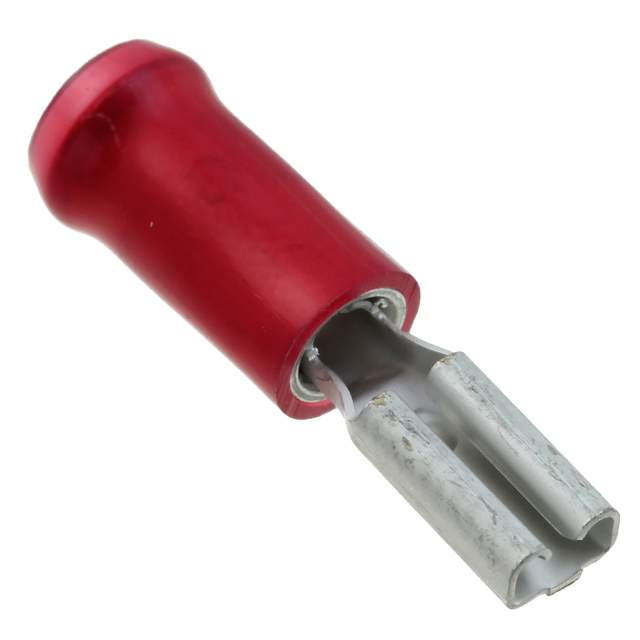

| Part Number | 165566-1 |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|
| Description | CONN QC RCPT 16-22AWG 0.110 |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | Faston, PIDG |
|---|
| Family | Terminals - Quick Connects, Quick Disconnect Connectors |
|---|
| Featured Product |
PIDG Terminals and Splices
|
|---|
| 3D Model |
165566-1.pdf
|
|---|
| Standard Package | 1,000 |
|---|
| Packaging | Bulk |
|---|
| Terminal Type | Standard |
|---|
| Gender | Female |
|---|
| Tab Width | 0.110" (2.79mm) |
|---|
| Tab Thickness | 0.032" (0.81mm) |
|---|
| Tab Length | 0.248" (6.30mm) |
|---|
| Length - Overall | 0.780" (19.81mm) |
|---|
| Termination | Crimp |
|---|
| Wire Gauge | 16-22 AWG |
|---|
| Insulation | Non-Mating End Insulated |
|---|
| Mounting Type | Free Hanging (In-Line) |
|---|
| Features | - |
|---|
| Color | Red |
|---|
| Contact Material | Brass |
|---|
| Contact Finish | Tin |
|---|
| Insulation Diameter | 0.140" (3.56mm) |
|---|
| Other Names | 165566-1-ND208904-000A112605 |
|---|
