| Part Number | 8230 |
|---|
| Manufacturer | Keystone Electronics |
|---|

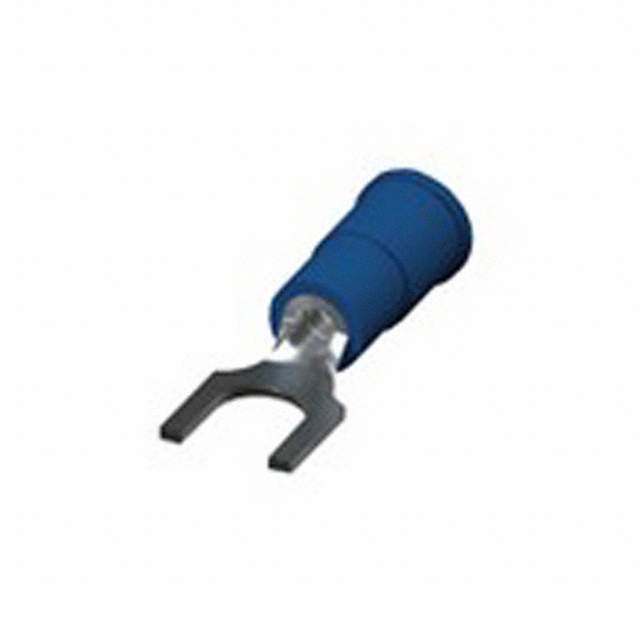

| Description | TERM BLOCK SPADE #6 STUD INSUL |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | - |
|---|
| Family | Terminals - Spade Connectors |
|---|
| Standard Package | 100 |
|---|
| Packaging | Bulk |
|---|
| Terminal Type | Standard |
|---|
| Stud/Tab Size | 6 Stud |
|---|
| Width - Outer Edges | 0.300" (7.62mm) |
|---|
| Length - Overall | 0.700" (17.78mm) |
|---|
| Mounting Type | Free Hanging (In-Line) |
|---|
| Termination | Crimp |
|---|
| Wire Gauge | 14-16 AWG |
|---|
| Insulation | Insulated |
|---|
| Features | - |
|---|
| Color | Blue |
|---|
| Contact Finish | Tin |
|---|
| Contact Material | Copper, ETP |
|---|
| Insulation Diameter | 0.175" (4.45mm) |
|---|
| Material - Insulation | Vinyl |
|---|
| Length - Ring Center to Termination | 0.250" (6.35mm) |
|---|
| Length - Termination | 0.450" (11.43mm) |
|---|
| Tongue Inside Opening | - |
|---|
| Tooling | 36-1345-ND - TOOL |
|---|
| Other Names | 36-82308230K8230K-ND |
|---|
