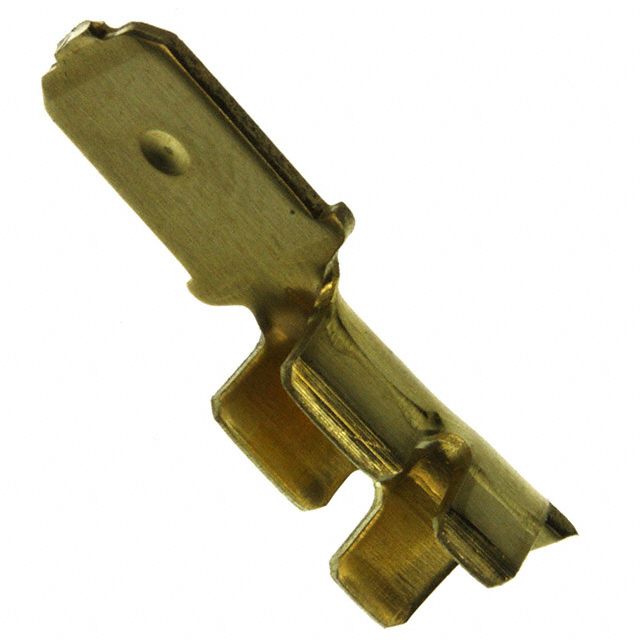

| Part Number | 41411 |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|
| Description | CONN QC TAB 14-18AWG 0.250 CRIMP |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | Faston |
|---|
| Family | Terminals - Quick Connects, Quick Disconnect Connectors |
|---|
| 3D Model |
41411.pdf
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Cut Tape (CT) |
|---|
| Terminal Type | Standard |
|---|
| Gender | Male |
|---|
| Tab Width | 0.250" (6.35mm) |
|---|
| Tab Thickness | 0.032" (0.81mm) |
|---|
| Tab Length | 0.312" (7.92mm) |
|---|
| Length - Overall | 0.775" (19.69mm) |
|---|
| Termination | Crimp |
|---|
| Wire Gauge | 14-18 AWG |
|---|
| Insulation | Non-Insulated |
|---|
| Mounting Type | Free Hanging (In-Line) |
|---|
| Features | - |
|---|
| Color | - |
|---|
| Contact Material | Brass |
|---|
| Contact Finish | - |
|---|
| Insulation Diameter | 0.120" ~ 0.170" (3.05mm ~ 4.32mm) |
|---|
| Online Catalog | Faston Series |
|---|
| For Use With | 360042-1-ND - CONN TAB CAPS FASTON .250A122474-ND - CONN HOUSING .250 1POS NATURAL881339-1-ND - CONN INSULATION SLEEVE TAB .250881339-2-ND - FASTON TAB SLEEVE |
|---|
| Other Names | A27887CT |
|---|
