| Part Number | 1437 |
|---|
| Manufacturer | Keystone Electronics |
|---|

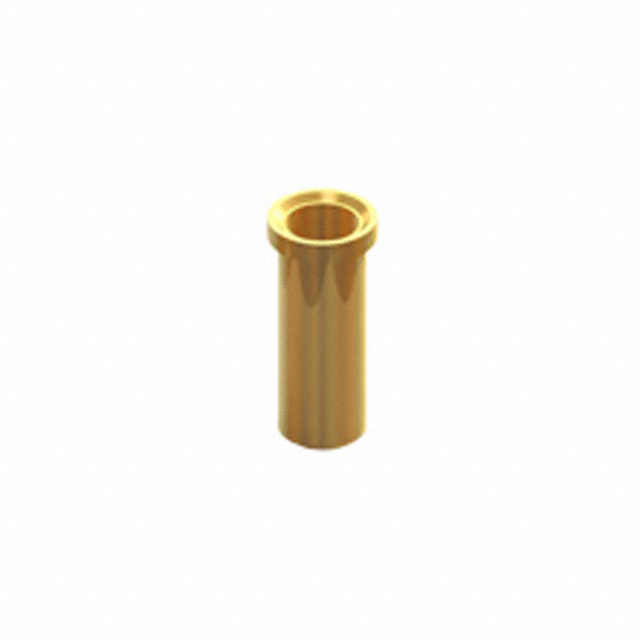

| Description | JACK .032-.046".206"L SLD MNT SN |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | - |
|---|
| Family | Terminals - PC Pin Receptacles, Socket Connectors |
|---|
| Standard Package | 100 |
|---|
| Packaging | Bulk |
|---|
| Tail Type | No Tail |
|---|
| Termination | Solder |
|---|
| Length - Overall | 0.206" (5.23mm) |
|---|
| Accepts Pin Diameter | 0.032" ~ 0.046" (0.81mm ~ 1.17mm) |
|---|
| Mounting Hole Diameter | 0.076" (1.93mm) |
|---|
| Pin Hole Diameter | - |
|---|
| Flange Diameter | 0.091" (2.31mm) |
|---|
| Tail Diameter | - |
|---|
| Socket Depth | 0.180" (4.57mm) |
|---|
| Contact Material | Beryllium Copper |
|---|
| Contact Finish | Tin-Lead |
|---|
| Contact Finish Thickness | 200μin (5.08μm) |
|---|
| Features | - |
|---|
| Operating Temperature | - |
|---|
| Board Thickness | - |
|---|
| Insertion Force | - |
|---|
| Other Names | 1437K1437K-ND36-1437 |
|---|
