| Part Number | 61498-3 |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|

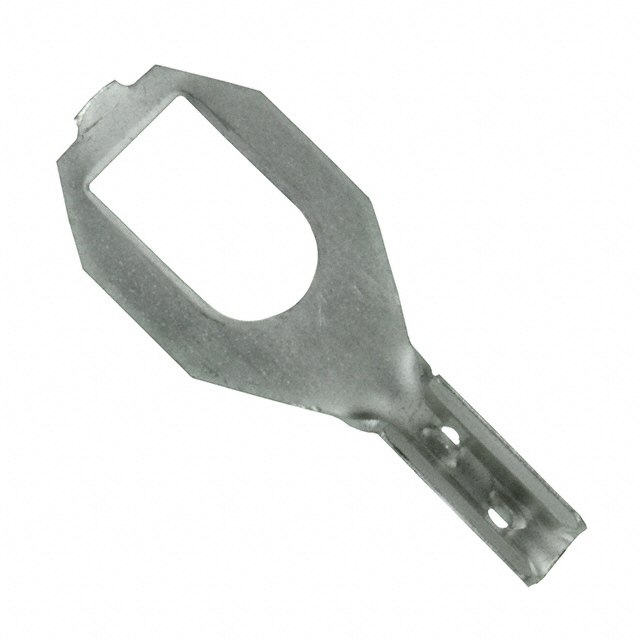

| Description | CONN SPADE UNINS 22-28AWG #5 |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | - |
|---|
| Family | Terminals - Spade Connectors |
|---|
| Standard Package | 784,000 |
|---|
| Packaging | Reel |
|---|
| Terminal Type | Standard |
|---|
| Stud/Tab Size | 5 Stud |
|---|
| Width - Outer Edges | 0.250" (6.35mm) |
|---|
| Length - Overall | 0.578" (14.69mm) |
|---|
| Mounting Type | Free Hanging (In-Line) |
|---|
| Termination | Crimp, Piercing |
|---|
| Wire Gauge | 22-28 AWG |
|---|
| Insulation | Non-Insulated |
|---|
| Features | - |
|---|
| Color | - |
|---|
| Contact Finish | Tin |
|---|
| Contact Material | Brass |
|---|
| Insulation Diameter | 0.035" ~ 0.040" (0.89mm ~ 1.02mm) |
|---|
| Material - Insulation | - |
|---|
| Length - Ring Center to Termination | 0.215" (5.46mm) |
|---|
| Length - Termination | 0.212" (5.38mm) |
|---|
| Tongue Inside Opening | 0.133" (3.38mm) |
|---|
