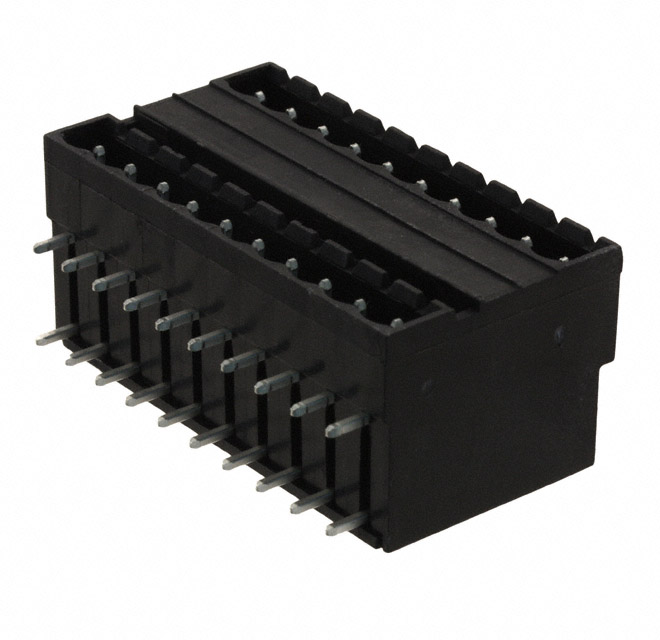

| Part Number | ELFA20110 |
|---|
| Manufacturer | Amphenol PCD |
|---|
| Description | TERM BLOCK HDR 20POS R/A 5MM |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | ELFA |
|---|
| Family | Terminal Blocks - Headers, Plugs and Sockets |
|---|
| Standard Package | 100 |
|---|
| Packaging | Bulk |
|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
|---|
| Number of Positions | 20 |
|---|
| Positions Per Level | 10 |
|---|
| Number of Levels | 2 |
|---|
| Pitch | 0.197" (5.00mm) |
|---|
| Header Orientation | 90°, Right Angle |
|---|
| Plug Wire Entry | - |
|---|
| Termination Style | Solder |
|---|
| Mounting Type | Through Hole |
|---|
| Current - IEC | - |
|---|
| Voltage - IEC | - |
|---|
| Current - UL | 15A |
|---|
| Voltage - UL | 300V |
|---|
| Wire Gauge or Range - AWG | - |
|---|
| Wire Gauge or Range - mm2 | - |
|---|
| Color | Black |
|---|
| Operating Temperature | 125°C |
|---|
| Contact Mating Finish | Tin |
|---|
| Features | - |
|---|
| Online Catalog | ELF Series |
|---|
| Mating Products | ELFF10130-ND - TERM BLOCK PLUG 10POS 90DEG 5MMELFF10140-ND - TERM BLOCK PLUG 10POS 270DEG 5MMELFP10110-ND - TERM BLOCK PLUG 10POS STR 5MMELFT10150-ND - TERM BLOCK PLUG 10POS 90DEG 5MMELFT10160-ND - TERM BLOCK PLUG 10POS 270DEG 5MM |
|---|
| Associated Product | 300800820 (ELFKEY100)-ND - ELF HEADER POLARIZING KEYELFLABEL1-ND - ELF MARKING LABEL 1-12ELFLABEL2-ND - ELF MARKING LABEL 13-24 |
|---|
| Other Names | APC1168 |
|---|
