| Part Number | 66504-4 |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|

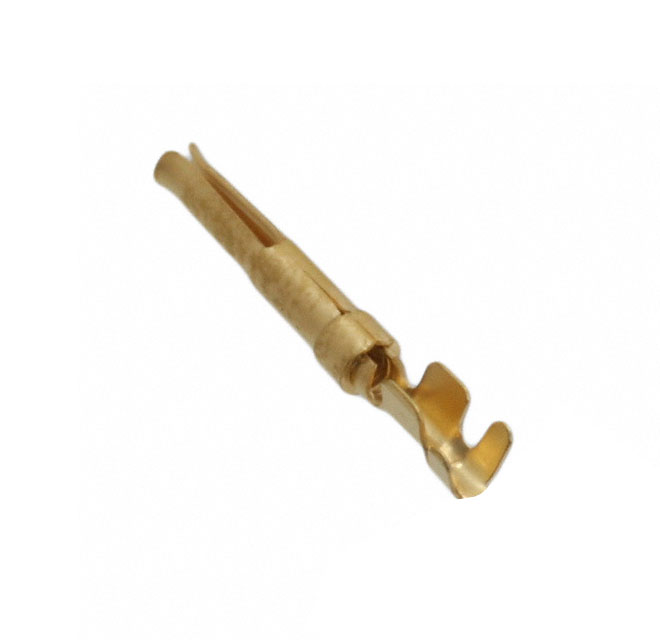

| Description | CONN SOCKET 20-24AWG GOLD CRIMP |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | AMPLIMITE HDP-20 |
|---|
| Family | Contacts - Multi Purpose |
|---|
| 3D Model |
66504-4.pdf
|
|---|
| Standard Package | 10,000 |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| Type | Stamped |
|---|
| Pin or Socket | Socket |
|---|
| Contact Termination | Crimp |
|---|
| Wire Gauge | 20-24 AWG |
|---|
| Material | Phosphor Bronze |
|---|
| Plating | Gold |
|---|
| Plating - Thickness | Flash |
|---|
| Online Catalog | AMPLIMITE HDP-20 Series |
|---|
| For Use With | A1031-ND - CONN D-SUB HOUSING RECEPT 9POSA1369-ND - CONN RECEPT CPC 8POS REV SER 2A1368-ND - CONN PLUG CPC 8POS STD SER 2A1374-ND - CONN PLUG CPC 9POS STD SER 2A1377-ND - CONN PLUG CPC 28POS STD SER 2A31492-ND - CONN D-SUB RECEPT 9POS W/O CONTA1619-ND - CONN HSG PLUG 28POS CABLE SKTA31484-ND - CONN D-SUB RECEPT 9POS W/O CONTA34108-ND - CONN D-SUB HOUSING RECEPT 25POSA34106-ND - CONN D-SUB HOUSING RECEPT 15POSA34110-ND - CONN D-SUB HOUSING RECEPT 37POSA31893-ND - CONN D-SUB HOUSING RECEPT 50POSA1378-ND - CONN RECEPT CPC 28POS REV SER 2A34112-ND - CONN D-SUB HOUSING RECEPT 50POSA31921-ND - CONN D-SUB HOUSING RECEPT 9POSA31922-ND - CONN D-SUB HOUSING RECEPT 15POSA35200-ND - CONN D-SUB RCPT 25POS CRIMPA1381-ND - CONN RECEPT CPC 57POS REV SER 2A1386-ND - CONN PLUG CPC 63POS STD SER 2A35231-ND - CONN D-SUB RECEPT 50POS CRIMPA31496-ND - CONN D-SUB RECEPT 25POS W/O CONTA1382-ND - CONN RECEPT CPC 57POS REV SER 2A1379-ND - CONN RECEPT CPC 28POS REV SER 2A105001-ND - CONN RCPT CPC 28POS PANEL MOUNTA31531-ND - CONN D-SUB RECEPT 50POS W/O CONTA30226-ND - CONN HOUSING RECEPT 6POS BLACKA25045-ND - CONN PLUG CPC 28POS STD SER 2A23471-ND - CONN D-SUB HOUSING RECEPT 9POSA31917-ND - CONN D-SUB HOUSING RECEPT 25POS202757-3-ND - CONN RCPT HOUSING 6POSA114026-ND - CONN D-SUB RECEPT HOUSING 9POSA117067-ND - MODULE FEMALE 4POS CRIMPA34104-ND - CONN D-SUB HOUSING RECEPT 9POSA1033-ND - CONN D-SUB HOUSING RECEPT 15POSA1035-ND - CONN D-SUB HOUSING RECEPT 25POSA1037-ND - CONN D-SUB HOUSING RECEPT 37POSA1370-ND - CONN RECEPT CPC 8POS REV SER 2A31494-ND - CONN D-SUB RECEPT 15POS W/O CONTA31529-ND - CONN D-SUB RECEPT 15POS W/O CONTA31487-ND - CONN D-SUB RECEPT 25POS W/O CONTA1620-ND - CONN HSG RCPT 28POS PNL MNT SKTA34113-ND - CONN D-SUB HOUSING RECEPT 37POSA31489-ND - CONN D-SUB RECEPT 37POS W/O CONTA31498-ND - CONN D-SUB RECEPT 37POS W/O CONTA1625-ND - CONN HSG PLUG 63POS CABLE SKTA25044-ND - CONN PLUG CPC 28POS STD SER 2A105005-ND - CONN RCPT 15POS CRIMP SNAP METAL206433-3-ND - CONN RCPT CPC 8P |
|---|
| Tooling | A9979-ND - INSERTION/EXTRACTION TOOL HDP-22 |
|---|
| Other Names | 665044A1009TR |
|---|
