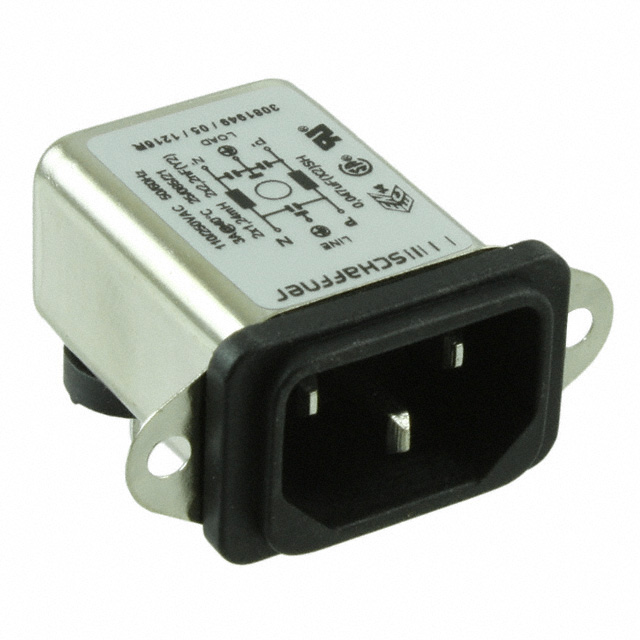

| Part Number | FN9226-3-02 |
|---|
| Manufacturer | Schaffner EMC Inc. |
|---|
| Description | FILTER HF PERFORM IEC INLET 3A |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | FN 9226 |
|---|
| Family | Power Entry Connectors - Inlets, Outlets, Modules |
|---|
| Standard Package | 20 |
|---|
| Packaging | Bulk |
|---|
| Connector Style | IEC 320-C14 |
|---|
| Connector Type | Receptacle, Male Blades |
|---|
| Current - IEC | - |
|---|
| Voltage - IEC | - |
|---|
| Current - UL | 3A |
|---|
| Voltage - UL | 250VAC |
|---|
| Filter Type | Filtered (EMI, RFI) - Commercial |
|---|
| Fuse | No |
|---|
| Number of Positions | 3 |
|---|
| Mounting Type | Panel Mount, Flange; Through Hole, Right Angle |
|---|
| Termination | Solder |
|---|
| Switch Features | - |
|---|
| Features | - |
|---|
| Fuse Holder, Drawer | - |
|---|
| Panel Cutout Dimensions | Rectangular - 34.40mm x 22.60mm |
|---|
| Panel Thickness | - |
|---|
| Material Flammability Rating | UL94 V-2 |
|---|
| Ingress Protection | IP40 |
|---|
| Approvals | CSA, ENEC, SEMKO, UL |
|---|
| Online Catalog | FN 9226 Series |
|---|
| Associated Product | 817-1656-ND - LOCKING LINE CORD 3 COND US 6''817-1657-ND - LOCKING LINE CORD 3 COND US 6''817-1655-ND - LOCKING LINE CORD 3 COND EU 2M817-1654-ND - LOCKING LINE CORD 3 COND UK 2M |
|---|
| Other Names | 292-012800639817-1468FN9226 - 3 -02FN9226302 |
|---|
