| Part Number | 1658655-1 |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|

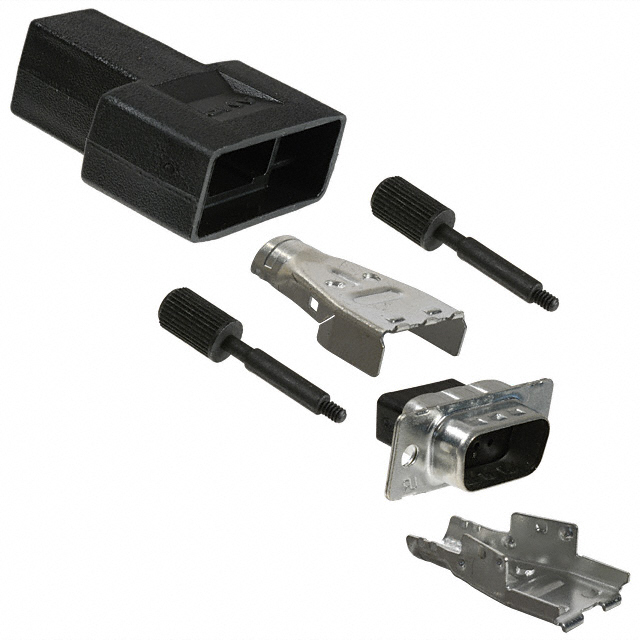

| Description | CONN D-SUB PLUG 9POS W/O CONT |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | AMPLIMITE HDP-20 |
|---|
| Family | D-Sub, D-Shaped Connectors - Housings |
|---|
| 3D Model |
1658655-1.pdf
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Bulk |
|---|
| Connector Style | D-Sub |
|---|
| Connector Type | Plug for Male Contacts |
|---|
| Number of Positions | 9 |
|---|
| Number of Rows | 2 |
|---|
| Shell Size, Connector Layout | 1 (DE, E) |
|---|
| Contact Type | Signal |
|---|
| Mounting Type | Free Hanging (In-Line) |
|---|
| Flange Feature | Cable Side (4-40) |
|---|
| Features | Backshell, Grounding Indents, Shielded |
|---|
| Shell Material, Finish | Steel, Tin Plated |
|---|
| Shell Finish Thickness | 200μin (5.08μm) |
|---|
| Note | Contacts Not Provided |
|---|
| Ingress Protection | - |
|---|
| Operating Temperature | - |
|---|
| Mating Cycles | - |
|---|
| Dielectric Material | Polyamide (PA), Nylon, Glass Filled |
|---|
| Color | Black |
|---|
| Online Catalog | AMPLIMITE HDP-20 Series |
|---|
| Mating Products | A1031-ND - CONN D-SUB HOUSING RECEPT 9POSA31492-ND - CONN D-SUB RECEPT 9POS W/O CONTA31484-ND - CONN D-SUB RECEPT 9POS W/O CONTA31921-ND - CONN D-SUB HOUSING RECEPT 9POSA34104-ND - CONN D-SUB HOUSING RECEPT 9POSA122582-ND - CONN RCPT 9POS CRIMP SNAP METAL |
|---|
| Other Names | 16586551A31493 |
|---|
