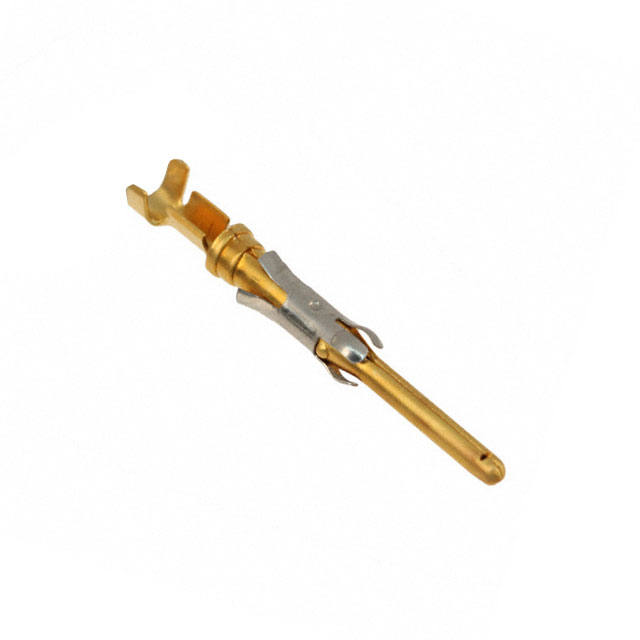

| Part Number | 66564-8 |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|
| Description | CONN PIN 20-24AWG GOLD CRIMP |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | Multimate III+ |
|---|
| Family | Contacts - Multi Purpose |
|---|
| 3D Model |
66564-8.pdf
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Cut Tape (CT) |
|---|
| Type | Stamped |
|---|
| Pin or Socket | Pin |
|---|
| Contact Termination | Crimp |
|---|
| Wire Gauge | 20-24 AWG |
|---|
| Material | Brass |
|---|
| Plating | Gold |
|---|
| Plating - Thickness | 30μin (0.76μm) |
|---|
| Online Catalog | Multimate, Type III+ Series |
|---|
| For Use With | A1354-ND - CONN RECEPT CPC 24POS STD SER 1A1645-ND - CONN PLUG CPC 9POS REV SER 1211759-1-ND - CONN RECEPT 12 POS METRIMATEA30184-ND - CONN HOUSING PLUG 14POS BLACKA1636-ND - CONN RECEPT CPC 9POS STD SER 1211149-1-ND - CONN RECEPT 25 POS METRIMATEA1355-ND - CONN RECEPT CPC 24POS STD SER 1A1646-ND - |
|---|
| Tooling | A1329-ND - CONTACT EXTRACTION TOOLA9998-ND - TOOL INSERTION .062 & .093 CONN200893-2-ND - TOOL INSERTION CPC CONTACTS |
|---|
| Other Names | 66564-8-NDA25113A25113-NDA25115CT |
|---|
