| Part Number | 206613-1 |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|

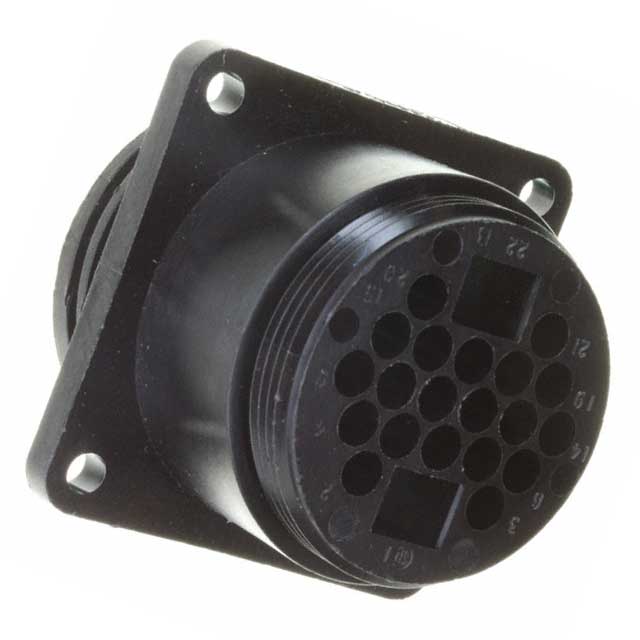

| Description | CONN RECEPT CPC 22POS STD SER 4 |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | CPC Series 4 |
|---|
| Family | Circular Connectors - Housings |
|---|
| Product Training Modules |
Connectivity Circular Plastic Connectors (CPC)
|
|---|
| Featured Product |
Circular Connectors
|
|---|
| 3D Model |
206613-1.pdf
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Bulk |
|---|
| Connector Type | Receptacle for Male Contacts |
|---|
| Number of Positions | 22 |
|---|
| Shell Size - Insert | 23-22M |
|---|
| Shell Size, MIL | - |
|---|
| Contact Type | Crimp |
|---|
| Contact Size | 16 (20), 2 Power |
|---|
| Mounting Type | Panel Mount, Flange |
|---|
| Fastening Type | Threaded |
|---|
| Orientation | Keyed |
|---|
| Shell Material, Finish | Thermoplastic |
|---|
| Ingress Protection | - |
|---|
| Features | - |
|---|
| Note | Contacts Not Provided |
|---|
| Online Catalog | CPC and CMC Series 4 |
|---|
| Mating Products | A16037-ND - CONN PLUG CPC 22POS STD SER 4206612-2-ND - CONN PLUG CPC 22POS FREE HANG |
|---|
| Associated Product | A31989TR-ND - CONN PIN 20-24AWG TIN CRIMPA31989CT-ND - CONN PIN 20-24AWG TIN CRIMPA31998TR-ND - CONN PIN .062 14-18AWG TIN CRIMPA31998CT-ND - CONN PIN 14-18AWG TIN CRIMPA31987TR-ND - CONN PIN 16-18AWG TIN CRIMPA31987CT-ND - CONN PIN 16-18AWG TIN CRIMPA31996TR-ND - CONN PIN 20-24AWG TIN CRIMPA31996CT |
|---|
| Other Names | 2066131A16031 |
|---|
