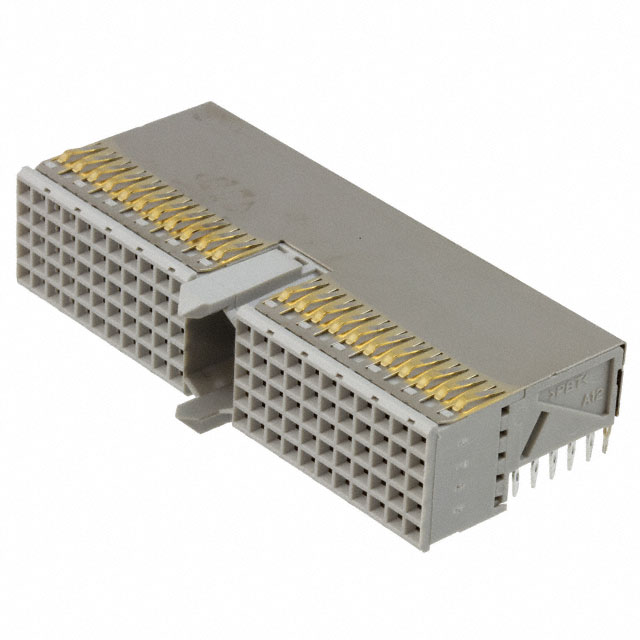

| Part Number | PCN21B-110SA-2PF-G |
|---|
| Manufacturer | Hirose Electric Co Ltd |
|---|
| Description | CONN RECEPT METRIC 2MM 110PIN |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | PCN21 |
|---|
| Family | Backplane Connectors - Hard Metric, Standard |
|---|
| Standard Package | 35 |
|---|
| Packaging | Bulk |
|---|
| Connector Type | Receptacle, Female Sockets |
|---|
| Connector Style | A 22 |
|---|
| Number of Positions | 110 |
|---|
| Number of Positions Loaded | All |
|---|
| Pitch | 0.079" (2.00mm) |
|---|
| Number of Rows | 5 |
|---|
| Mounting Type | Through Hole, Right Angle |
|---|
| Termination | Press-Fit |
|---|
| Connector Usage | Front Board |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | 31.5μin (0.80μm) |
|---|
| Current Rating | 1.5A |
|---|
| Voltage Rating | 300V |
|---|
| Operating Temperature | -55°C ~ 125°C |
|---|
| Features | Board Guide, Ground Plate |
|---|
| Mating Products | H3201-ND - CONN HEADER METRIC 2MM 110PINPCN21B-110PA-2W-G-ND - CONN HEADER METRIC 2MM 110PIN |
|---|
| Associated Product | PCN21B-SA-G-ND - CONN GROUND PLATE 110 SA RECEPT |
|---|
| Other Names | *PCN21B-110SA-2PF-GPCN21B-110SA-2PFG |
|---|
