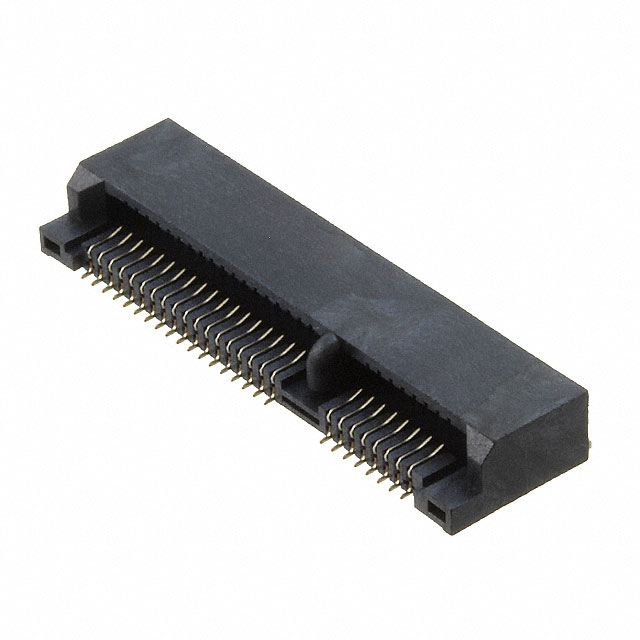

| Part Number | 2041119-1 |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|
| Description | CONN MINI PCI EXPRESS CARD R/A S |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | - |
|---|
| Family | Card Edge Connectors - Edgeboard Connectors |
|---|
| 3D Model |
2041119-1.pdf
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Cut Tape (CT) |
|---|
| Card Type | PCI Express Mini Card |
|---|
| Gender | Female |
|---|
| Number of Positions/Bay/Row | - |
|---|
| Number of Positions | 52 |
|---|
| Card Thickness | 0.039" (1.00mm) |
|---|
| Number of Rows | 2 |
|---|
| Pitch | 0.031" (0.80mm) |
|---|
| Features | Board Guide |
|---|
| Mounting Type | Surface Mount, Right Angle |
|---|
| Termination | Solder |
|---|
| Contact Material | Phosphor Bronze |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | Flash |
|---|
| Contact Type | - |
|---|
| Color | Black |
|---|
| Flange Feature | - |
|---|
| Operating Temperature | - |
|---|
| Material - Insulation | Liquid Crystal Polymer (LCP), Glass Filled |
|---|
| Read Out | Dual |
|---|
| Online Catalog | PCI Express Mini Card |
|---|
| Other Names | 20411191A108265CT |
|---|
