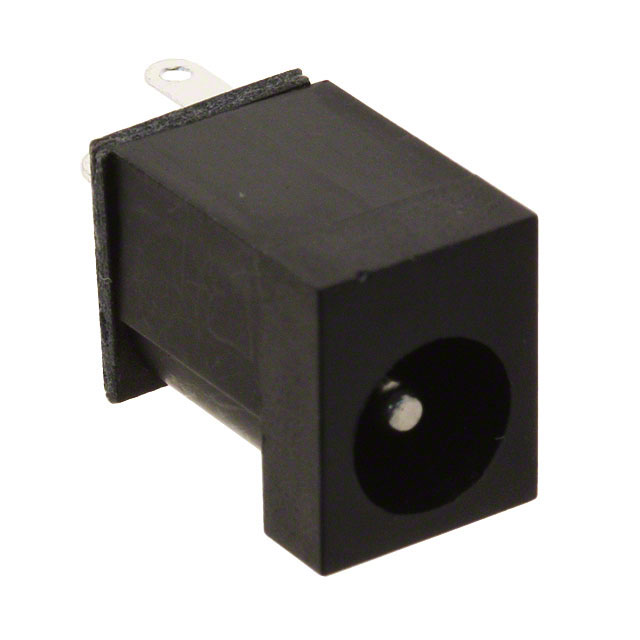

| Part Number | PJ-006A |
|---|
| Manufacturer | CUI Inc. |
|---|
| Description | CONN PWR JACK 2.1X5.5MM VERT |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | - |
|---|
| Family | Barrel - Power Connectors |
|---|
| 3D Model |
PJ-006A
|
|---|
| Standard Package | 500 |
|---|
| Connector Type | Jack |
|---|
| Gender | Male |
|---|
| Plug/Mating Plug Diameter | 2.1mm ID, 5.5mm OD |
|---|
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
|---|
| Internal Switch(s) | Single Switch, Normally Closed |
|---|
| Mounting Type | Through Hole |
|---|
| Termination | Solder Eyelet(s) |
|---|
| Shielding | Unshielded |
|---|
| Features | - |
|---|
| Color | Black |
|---|
| Voltage - Rated | 16VDC |
|---|
| Current Rating | 2A |
|---|
| Contact Material | Copper |
|---|
| Contact Material - Plating | Nickel |
|---|
| Housing Color | Black |
|---|
| Housing Material | Thermoplastic |
|---|
| Operating Temperature | -20°C ~ 85°C |
|---|
| Online Catalog | CUI Inc |
|---|
| Other Names | 045-0189RCP-006APJ-006A-NDPJ006A |
|---|
