| Part Number | 10018784-10213TLF |
|---|
| Manufacturer | FCI |
|---|

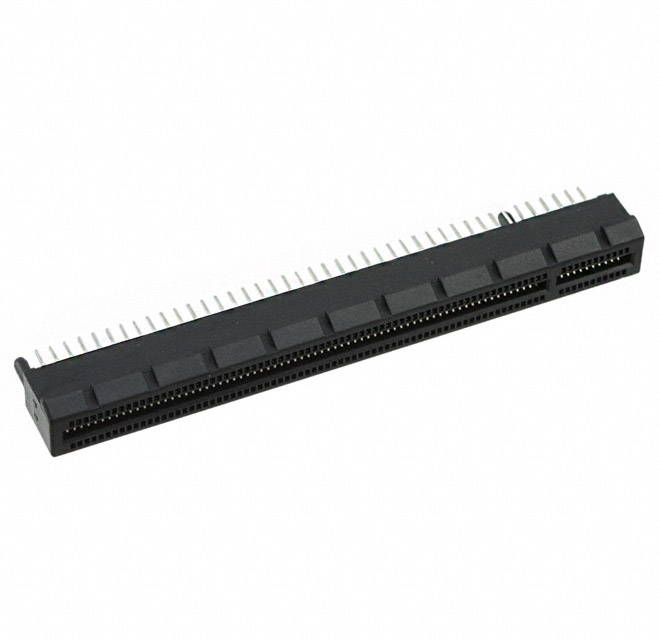

| Description | CONN PCI EXPRESS 164POS VERT PCB |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | - |
|---|
| Family | Card Edge Connectors - Edgeboard Connectors |
|---|
| PCN Design/Specification |
GXT Plating 08/Aug/2013
GXT Plating Revision 19/Nov/2013
Edge Card Drawing 12/Dec/2014
|
|---|
| PCN Assembly/Origin |
PCI Devices 10/Mar/2011
|
|---|
| Standard Package | 30 |
|---|
| Packaging | Tray |
|---|
| Card Type | PCI Express? |
|---|
| Gender | Female |
|---|
| Number of Positions/Bay/Row | - |
|---|
| Number of Positions | 164 |
|---|
| Card Thickness | 0.062" (1.57mm) |
|---|
| Number of Rows | 2 |
|---|
| Pitch | 0.039" (1.00mm) |
|---|
| Features | Board Guide, Locking Ramp |
|---|
| Mounting Type | Through Hole |
|---|
| Termination | Solder, Staggered |
|---|
| Contact Material | Copper Alloy |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | Flash |
|---|
| Contact Type | Cantilever |
|---|
| Color | Black |
|---|
| Flange Feature | - |
|---|
| Operating Temperature | -55°C ~ 85°C |
|---|
| Material - Insulation | Polyamide (PA), Nylon, Glass Filled |
|---|
| Read Out | Dual |
|---|
| Related Products | 3M12028-ND - CABLE ASSY PCIE X16 250MM TWINAX3M12026-ND - CABLE ASSY PCIE X16 500MM TWINAX |
|---|
| Other Names | 609-2032 |
|---|
