| Part Number | 3502L |
|---|
| Manufacturer | Switchcraft Inc. |
|---|

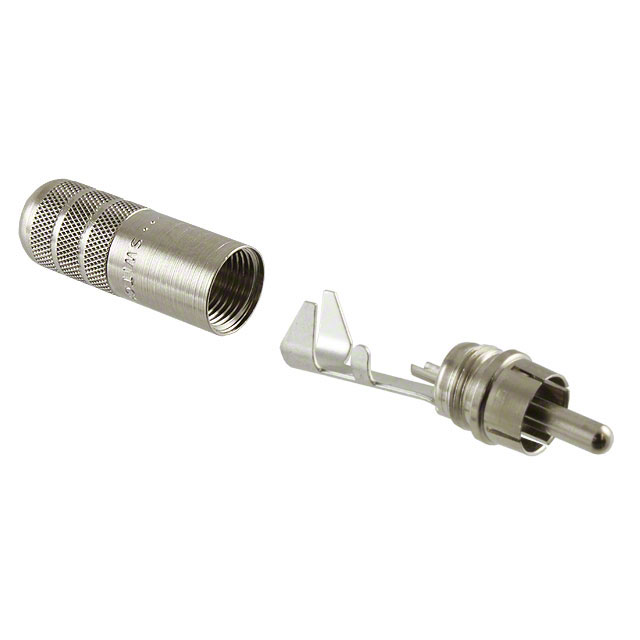

| Description | CONN PHONO PLUG RCA 2COND SHIELD |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | 3502A |
|---|
| Family | Barrel - Audio Connectors |
|---|
| Standard Package | 1 |
|---|
| Packaging | - |
|---|
| Connector Type | Phono (RCA) Plug |
|---|
| Gender | Male |
|---|
| Signal Lines | Mono |
|---|
| Plug/Mating Plug Diameter | 3.20mm ID, 9.00mm OD (RCA) |
|---|
| Number of Positions/Contacts | 2 Conductors, 2 Contacts |
|---|
| Internal Switch(s) | Does Not Contain Switch |
|---|
| Mounting Type | Free Hanging (In-Line) |
|---|
| Termination | Solder |
|---|
| Shielding | Shielded |
|---|
| Features | - |
|---|
| Color - Contact | Silver |
|---|
| Contact Material | Copper Alloy |
|---|
| Contact Material - Plating | Nickel |
|---|
| Housing Material | Copper Alloy |
|---|
| Housing Color | Silver |
|---|
| Operating Temperature | - |
|---|
| Voltage - Rated | - |
|---|
| Current Rating | - |
|---|
| Mating Products | SC1320-ND - CONN JACK PHONO 2POS REAR PNLMTSC1319-ND - CONN JACK PHONO 2POS FRONT PNLMTSC1829-ND - CONN JACK BLKHD YEL FRONT MT AUSC1991-ND - CONN JACK BLKHD WHITE REAR MTSC1828-ND - CONN JACK BLKHD RED FRONT MT AUBPJF06-ND - FRONT BULKHD RCA JCKBPJF02X-ND - CONN JACK BLKHD RED FRONT MTBPJF03X-ND - |
|---|
