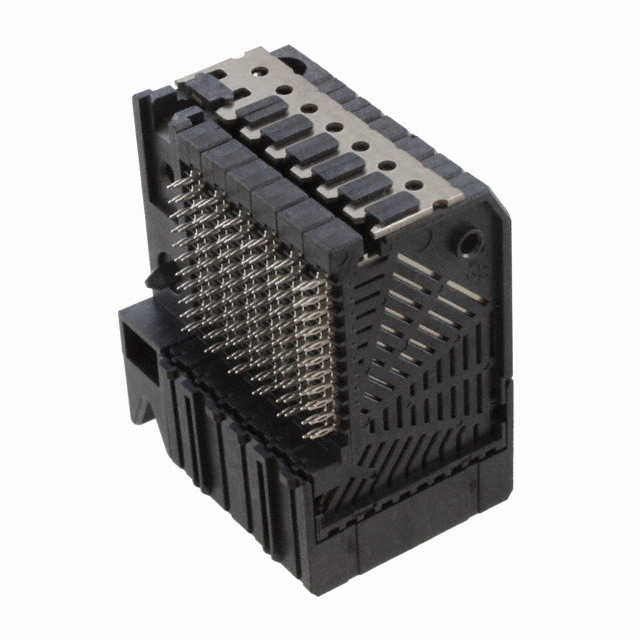

| Part Number | 75710-5006 |
|---|
| Manufacturer | Molex Connector Corporation |
|---|
| Description | CONN RCPT MOD 132POS 11ROW R/A |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | GbX I-Trac? 75710 |
|---|
| Family | Backplane Connectors - Specialized |
|---|
| Other Related Documents |
Backplane Roadmap
|
|---|
| Video File |
Molex - GbX I-Trac? Backplane Connector System
|
|---|
| 3D Model |
75710-5006.stp
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Tray |
|---|
| Connector Usage | Coplanar, Daughtercard |
|---|
| Connector Type | Receptacle, Female Sockets |
|---|
| Connector Style | I-Trac, Guide Right |
|---|
| Number of Positions | 132 |
|---|
| Number of Positions Loaded | All |
|---|
| Pitch | - |
|---|
| Number of Rows | 11 |
|---|
| Number of Columns | 6 |
|---|
| Mounting Type | Board Edge, Through Hole, Right Angle |
|---|
| Termination | Press-Fit |
|---|
| Contact Layout, Typical | - |
|---|
| Features | - |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | 30μin (0.76μm) |
|---|
| Color | Black |
|---|
| Current Rating | - |
|---|
| Material Flammability Rating | UL94 V-0 |
|---|
| Operating Temperature | -55°C ~ 80°C |
|---|
| Voltage Rating | 120V |
|---|
| Online Catalog | GbX I-Trac? Series |
|---|
| Tooling | 62201-8605-ND - TOOL HAND RA RCPT/HDR 11COL 6ROW |
|---|
| Other Names | 075710-5006075710-5006-E07571050060757105006-E75710-5006-E75710-5006-ND757105006757105006-EWM6571 |
|---|
