| Part Number | 5535032-4 |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|

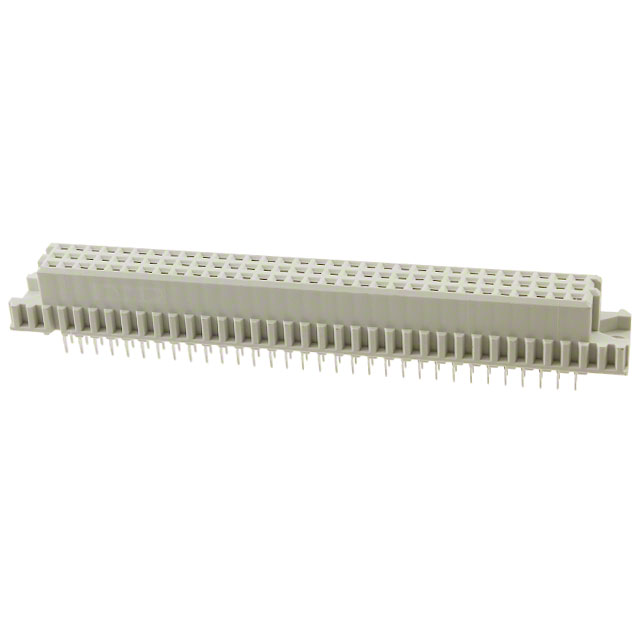

| Description | CONN RCPT 96POS VERT PCB |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | Eurocard |
|---|
| Family | Backplane Connectors - DIN 41612 |
|---|
| 3D Model |
5535032-4.pdf
|
|---|
| PCN Design/Specification |
5535032-4 Part Revision 03/Feb/2015
|
|---|
| Standard Package | 30 |
|---|
| Packaging | Bulk |
|---|
| Connector Type | Receptacle, Female Sockets |
|---|
| Number of Positions | 96 |
|---|
| Number of Positions Loaded | All |
|---|
| Pitch | 0.100" (2.54mm) |
|---|
| Number of Rows | 3 |
|---|
| Style | C |
|---|
| Level, Class | 2 |
|---|
| Mounting Type | Through Hole |
|---|
| Termination | Press-Fit |
|---|
| Features | - |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | - |
|---|
| Operating Temperature | -55°C ~ 125°C |
|---|
| Current Rating | - |
|---|
| Material Flammability Rating | UL94 V-0 |
|---|
| Material - Insulation | Polymer Thermoplastic, Glass Filled |
|---|
| Mating Products | A32815-ND - CONN DIN PLUG 96POS RT ANG PCBA1254-ND - CONN DIN PLUG 96POS RT ANG PCBA32816-ND - CONN DIN PLUG 96POS RT ANG PCBA99508-ND - CONN PLUG 96POS R/A SOLDER T/HA1279-ND - CONN DIN PLUG 96POS RT ANG PCBA32817-ND - CONN DIN PLUG 96POS RT ANG PCBA29012-ND - CONN DIN PLUG 96POS RT ANG PCBA29009-N |
|---|
| Other Names | 13620141362014-ND55350324 |
|---|
