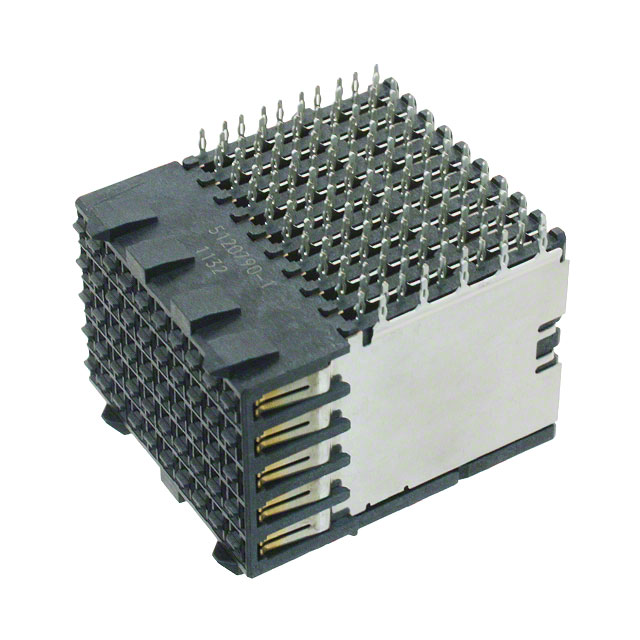

| Part Number | 5120790-1 |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|
| Description | CONN RCPT 2MM HM 100POS R/A GOLD |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | Z-PACK HS3 |
|---|
| Family | Backplane Connectors - Specialized |
|---|
| 3D Model |
5120790-1.pdf
|
|---|
| Standard Package | 20 |
|---|
| Packaging | Tube |
|---|
| Connector Usage | Backplane |
|---|
| Connector Type | Receptacle, Female Sockets |
|---|
| Connector Style | Dual Beam, Center |
|---|
| Number of Positions | 100 |
|---|
| Number of Positions Loaded | All |
|---|
| Pitch | 0.098" (2.50mm) |
|---|
| Number of Rows | 10 |
|---|
| Number of Columns | 10 |
|---|
| Mounting Type | Board Edge, Through Hole, Right Angle |
|---|
| Termination | Press-Fit |
|---|
| Contact Layout, Typical | - |
|---|
| Features | - |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | 30μin (0.76μm) |
|---|
| Color | - |
|---|
| Current Rating | 1.15A |
|---|
| Material Flammability Rating | UL94 V-0 |
|---|
| Operating Temperature | -65°C ~ 105°C |
|---|
| Voltage Rating | 250V |
|---|
| Online Catalog | Z-PACK HS3 Series |
|---|
| Mating Products | 5120658-2-ND - CONN HEADER 100POS 10ROW Z-PACKA101802-ND - CONN 2MM HM PLUG 100POS STR GOLD5120753-1-ND - Z-PACK HS3 HDR ASY 10R 100P,HL120658-1-ND - CONN 2MM HM PLUG 100POS STR GOLD |
|---|
| Tooling | 1338743-1-ND - TOOL SEAT 10ROW HS3 ZPACK 100POS |
|---|
| Other Names | 5120790-1-ND51207901A101811 |
|---|
