| Part Number | 10016537-101LF |
|---|
| Manufacturer | FCI |
|---|

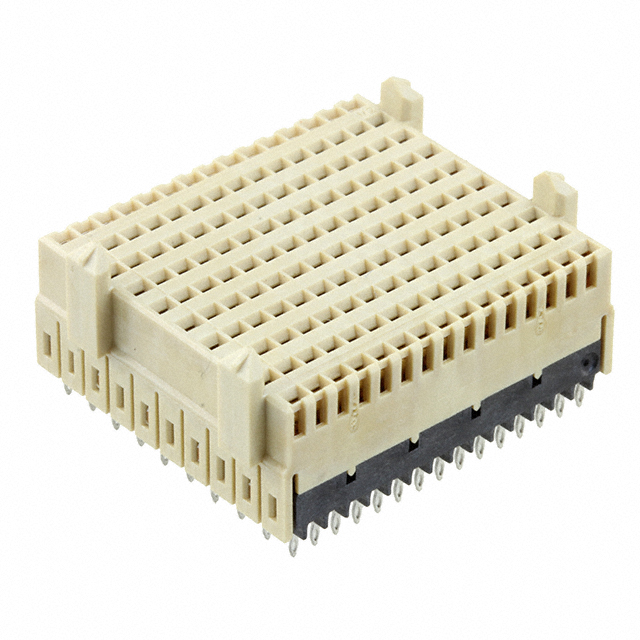

| Description | CONN RECEPT 150POS 2MM VERT PCB |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | Airmax VS? |
|---|
| Family | Backplane Connectors - Specialized |
|---|
| Product Training Modules |
Airmax
|
|---|
| Featured Product |
AirMax VS VS2 VSe Connectors
|
|---|
| PCN Design/Specification |
AIRMAX VS Modify PTH 14/May/2010
Airmax Housing 30/Mar.2011
|
|---|
| PCN Assembly/Origin |
AirMax/Location 06/Mar/2013
|
|---|
| Standard Package | 40 |
|---|
| Packaging | Bulk |
|---|
| Connector Usage | Daughtercard |
|---|
| Connector Type | Receptacle, Female Sockets |
|---|
| Connector Style | High Speed |
|---|
| Number of Positions | 150 |
|---|
| Number of Positions Loaded | All |
|---|
| Pitch | 0.055" (1.40mm) |
|---|
| Number of Rows | 15 |
|---|
| Number of Columns | 10 |
|---|
| Mounting Type | Through Hole |
|---|
| Termination | Press-Fit |
|---|
| Contact Layout, Typical | - |
|---|
| Features | - |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | 30μin (0.76μm) |
|---|
| Color | Natural |
|---|
| Current Rating | - |
|---|
| Material Flammability Rating | UL94 V-0 |
|---|
| Operating Temperature | -55°C ~ 85°C |
|---|
| Voltage Rating | - |
|---|
| Online Catalog | Airmax VS? Series |
|---|
| Mating Products | 609-2094-ND - CONN RECEPT 150POS 2MM R/A PCB |
|---|
| Other Names | 10016537101LF609-2088 |
|---|
