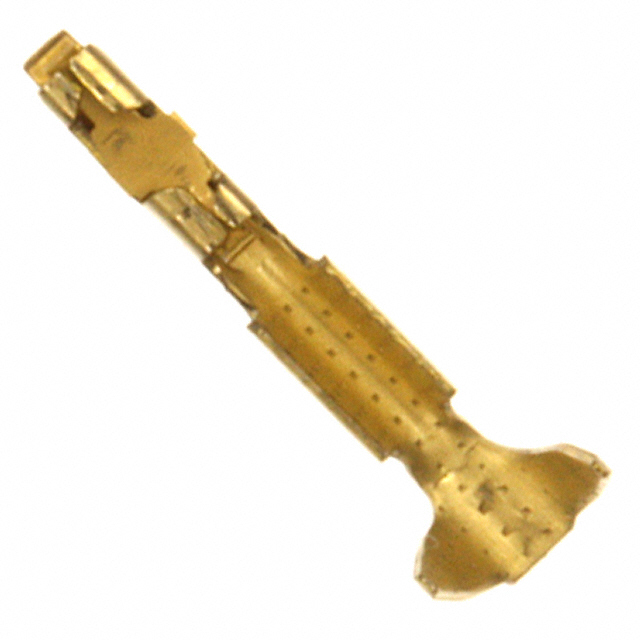

| Part Number | 48236-000LF |
|---|
| Manufacturer | FCI |
|---|
| Description | MINI PV CTW 30AU 22-26 AWG |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | Mini-PV?, Basics+ |
|---|
| Family | Rectangular Connectors - Contacts |
|---|
| PCN Design/Specification |
Mini, Maxi PV Plating 26/Aug/2008
Gold flash removal 27/Oct/2011
|
|---|
| PCN Assembly/Origin |
Mini, Maxi, CTW 02/may/2013
PV Terminals Location Change 11/Jun/2015
|
|---|
| Standard Package | 1,000 |
|---|
| Packaging | Bulk |
|---|
| Type | - |
|---|
| Pin or Socket | Socket |
|---|
| Contact Termination | Crimp |
|---|
| Wire Gauge | 22-26 AWG |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | 30μin (0.76μm) |
|---|
| Online Catalog | Mini-PV?, Basics+ |
|---|
| For Use With | 609-2341-ND - CONN HOUSING 2POS .100 SGL609-2395-ND - CONN HOUSING 3POS .100 SINGLE609-2338-ND - CONN HOUSING 5POS .100 SGL609-2337-ND - CONN HOUSING 6POS .100 SGL609-2396-ND - CONN HOUSING 4POS .100 SINGLE609-2335-ND - CONN HOUSING 8POS .100 SGL609-2334-ND - CONN HOUSING 9POS .100 SGL609-2375-ND - |
|---|
| Tooling | 609-2408-ND - TOOL HAND CRIMP RECEPT 22-32AWG |
|---|
| Other Names | 48236-000LF-ND48236000LF609-2852 |
|---|
