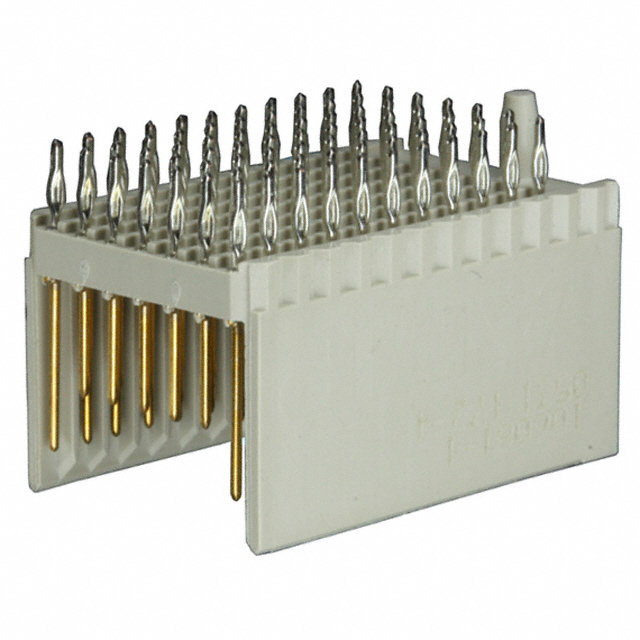

| Part Number | 106081-1 |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|
| Description | CONN HEADER VERT 77POS SHORT 2MM |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | Z-PACK |
|---|
| Family | Backplane Connectors - Hard Metric, Standard |
|---|
| 3D Model |
106081-1.pdf
|
|---|
| Standard Package | 21 |
|---|
| Packaging | Tube |
|---|
| Connector Type | Header, Male Pins |
|---|
| Connector Style | C 11 |
|---|
| Number of Positions | 77 (55 + 22 Ground) |
|---|
| Number of Positions Loaded | All |
|---|
| Pitch | 0.079" (2.00mm) |
|---|
| Number of Rows | 5 + 2 |
|---|
| Mounting Type | Through Hole |
|---|
| Termination | Press-Fit |
|---|
| Connector Usage | Backplane |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | 30μin (0.76μm) |
|---|
| Current Rating | 1.5A |
|---|
| Voltage Rating | 500V |
|---|
| Operating Temperature | -55°C ~ 125°C |
|---|
| Features | Board Guide |
|---|
| Online Catalog | Z-Pack Series |
|---|
| Mating Products | 352346-1-ND - CONN RECEPT RT ANG 55POS 2MM PCB188224-1-ND - 2MMHM TYPE C,55P,REC,SHIELDEDA115179-ND - CONN 2MM HM RCPT 55POS R/A GOLD |
|---|
| Other Names | 106081-1-NDA123194 |
|---|
