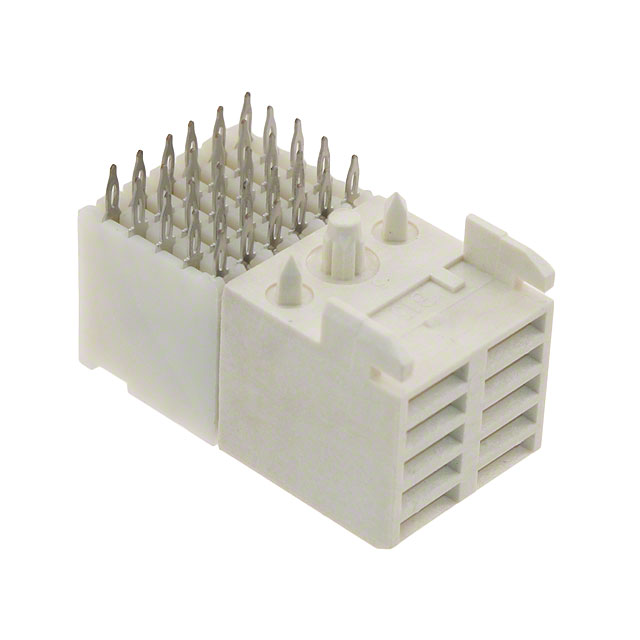

| Part Number | 89096-102LF |
|---|
| Manufacturer | FCI |
|---|
| Description | CONN RECEPT 10POS R/A PCB PRSFT |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | Metral? |
|---|
| Family | Backplane Connectors - Specialized |
|---|
| PCN Other |
Multiple Devices Material 25/Nov/2014
Multiple Devices Material Reversal 22/Apr/2015
|
|---|
| Standard Package | 48 |
|---|
| Packaging | Tube |
|---|
| Connector Usage | - |
|---|
| Connector Type | Receptacle, Female Blade Sockets |
|---|
| Connector Style | Blade Power |
|---|
| Number of Positions | 10 |
|---|
| Number of Positions Loaded | All |
|---|
| Pitch | 0.157" (4.00mm) |
|---|
| Number of Rows | 5 |
|---|
| Number of Columns | - |
|---|
| Mounting Type | Board Edge, Through Hole, Right Angle |
|---|
| Termination | Press-Fit |
|---|
| Contact Layout, Typical | 10 Power |
|---|
| Features | Board Guide, Spacer |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | 30μin (0.76μm) |
|---|
| Color | Natural |
|---|
| Current Rating | 1A |
|---|
| Material Flammability Rating | UL94 V-0 |
|---|
| Operating Temperature | -55°C ~ 105°C |
|---|
| Voltage Rating | 1000V |
|---|
| Online Catalog | Metral? Series |
|---|
| Mating Products | 609-3524-ND - CONN HEADER 10POS VERT PCB PFIT |
|---|
| Other Names | 609-250689096102LF |
|---|
