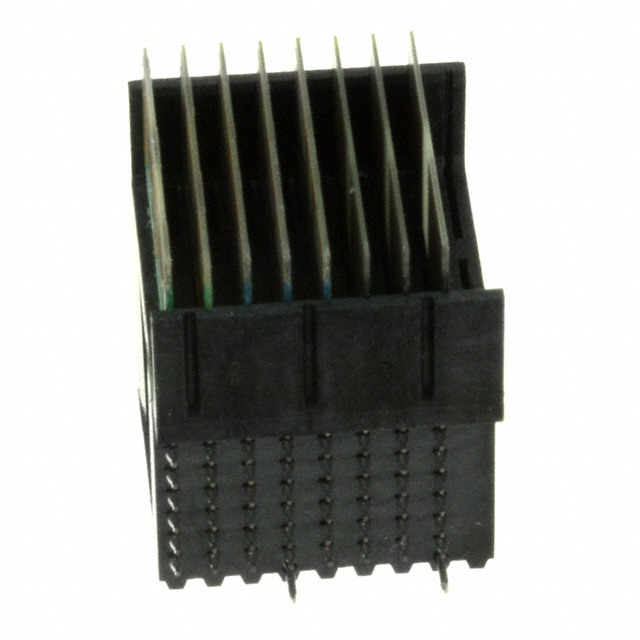

| Part Number | 1410189-3 |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|
| Description | CONN R/A PLUG DC VITA46 |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | MultiGig RT2 |
|---|
| Family | Backplane Connectors - Specialized |
|---|
| 3D Model |
1410189-3.pdf
|
|---|
| PCN Design/Specification |
E-14-000832 19/Feb/2014
14101yy Drawing 06/Mar/2014
14101yy-y Plating 15/May/2014
14101yy-y Drawing 14/Jul/2014
1410189 Drawing 22/Sep/2014
|
|---|
| Standard Package | 30 |
|---|
| Packaging | Tube |
|---|
| Connector Usage | Daughtercard |
|---|
| Connector Type | Plug, Male Blades |
|---|
| Connector Style | VITA 46, Half, Left End |
|---|
| Number of Positions | 56 |
|---|
| Number of Positions Loaded | 53 |
|---|
| Pitch | 0.071" (1.80mm) |
|---|
| Number of Rows | 7 |
|---|
| Number of Columns | 8 |
|---|
| Mounting Type | Board Edge, Through Hole, Right Angle |
|---|
| Termination | Solder |
|---|
| Contact Layout, Typical | 4 Signal Pairs, 16 Single Signal, 6 Power Groups, 11 Ground, 3 Open |
|---|
| Features | Board Guide |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | 50μin (1.27μm) |
|---|
| Color | Black |
|---|
| Current Rating | - |
|---|
| Material Flammability Rating | UL94 V-0 |
|---|
| Operating Temperature | -55°C ~ 105°C |
|---|
| Voltage Rating | - |
|---|
| Online Catalog | MultiGig RT Series |
|---|
| Mating Products | A99136-ND - CONN VERT RECEPT BP VITA41/46 |
|---|
| Other Names | 14101893A99142 |
|---|
