| Part Number | 1563 |
|---|
| Manufacturer | Keystone Electronics |
|---|

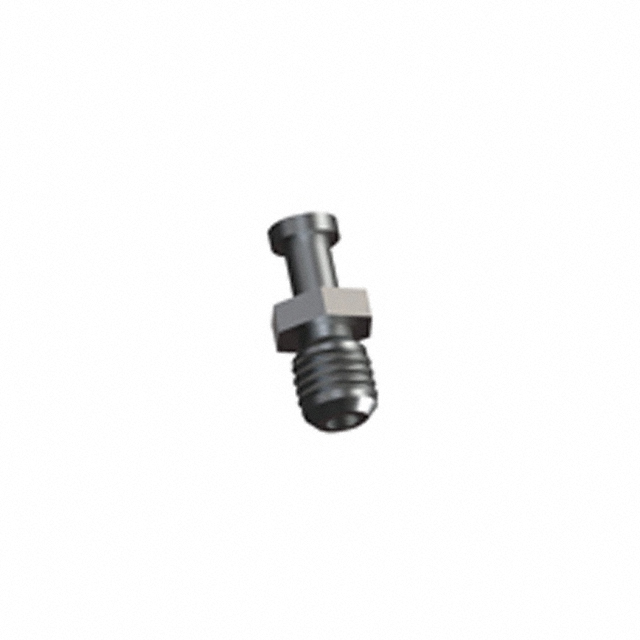

| Description | TERMINAL TURRET 4-40THR .043"DIA |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | - |
|---|
| Family | Terminals - Turret Connectors |
|---|
| Standard Package | 100 |
|---|
| Terminal Type | Single End, Hollow |
|---|
| Number of Turrets | Double |
|---|
| Length - Above Board | 0.156" (3.96mm) |
|---|
| Length - Below Flange | 0.125" (3.18mm) |
|---|
| Length - Overall | 0.281" (7.14mm) |
|---|
| Mounting Type | Panel Mount |
|---|
| Termination | Threaded |
|---|
| Flange Diameter | 0.125" (3.18mm) Hex |
|---|
| Diameter - Turret Head | 0.093" (2.36mm) |
|---|
| Staking Side OD | - |
|---|
| Staking Side ID | - |
|---|
| Mounting Hole Diameter | - |
|---|
| Board Thickness | - |
|---|
| Contact Material | Brass |
|---|
| Contact Finish | Tin |
|---|
| Contact Finish Thickness | - |
|---|
| Insulation | Non-Insulated |
|---|
| Material - Insulation | - |
|---|
| Insulation Color | - |
|---|
| Online Catalog | Turret Terminals - Keystone Electronics |
|---|
| Other Names | 1563K1563K-ND36-1563KEY1111KEY1111-ND |
|---|
