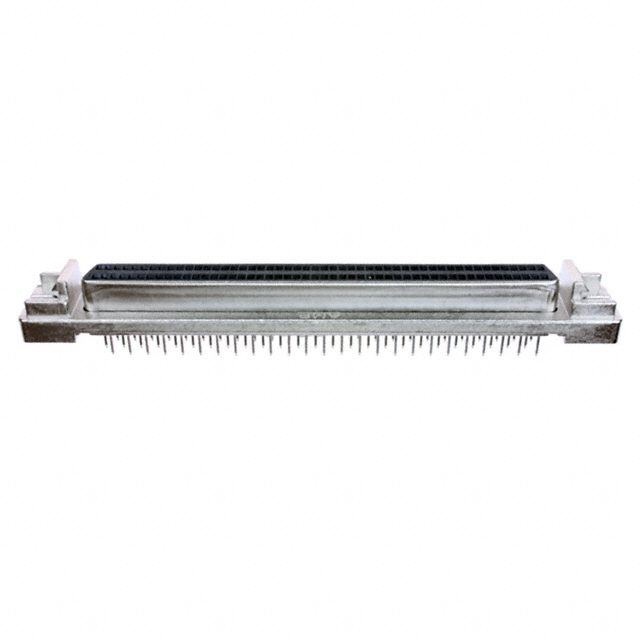

| Part Number | 749069-9 |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|
| Description | CONN D-TYPE RCPT 100POS VERT |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | AMPLIMITE .050 III |
|---|
| Family | D-Sub Connectors |
|---|
| Featured Product |
AMPLIMITE D-Subminiature Connectors
|
|---|
| 3D Model |
749069-9.pdf
|
|---|
| Standard Package | 378 |
|---|
| Packaging | Tube |
|---|
| Connector Style | D-Type |
|---|
| Connector Type | Receptacle, Female Sockets |
|---|
| Number of Positions | 100 |
|---|
| Number of Rows | 2 |
|---|
| Shell Size, Connector Layout | 0.050 Pitch x 0.100 Row to Row |
|---|
| Contact Type | Signal |
|---|
| Mounting Type | Through Hole |
|---|
| Flange Feature | Housing/Shell (2-56); Latchblocks, Rails |
|---|
| Termination | Solder |
|---|
| Features | Shielded |
|---|
| Shell Material, Finish | Steel, Nickel Plated |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | Flash |
|---|
| Ingress Protection | - |
|---|
| Operating Temperature | -55°C ~ 105°C |
|---|
| Voltage Rating | 30V |
|---|
| Current Rating | 1A |
|---|
| Housing Material | Thermoplastic |
|---|
| Color | Black |
|---|
| Online Catalog | AMPLIMITE .050 III Series |
|---|
| Mating Products | A33485-ND - CONN D-TYPE PLUG 100POS STR IDCA33484-ND - CONN D-TYPE PLUG 100POS STR IDCA33481-ND - CONN D-TYPE PLUG 100POS STR IDC |
|---|
| Other Names | 749069-9-ND7490699A23759 |
|---|
